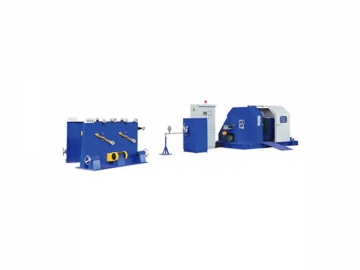

Cantilever Single Twist Bunching Machine
Request a Quote
View All: http://shcablemachinery.com
Usage
Our cantilever single twist bunching machine is an all-in-one cable production machine. The single twist machine can manufacturer various data cables by stranding the cable and taping the cover for use as soft conductors, computer cables and other control cable applications.
| Model | ||||
| Pay-off bobbin dia. | Φ400mm-φ500mm-φ630mm | |||
| Take-up bobbin dia. | φ630mm | Φ800mm | Φ1000mm | Φ1250mm |
| Applicable wire dia. | Φ0.6mm-3.0mm | Φ1.0mm-5.0mm | ||
| Main motor power | 11kw | 15kw | 15kw | 20kw |
| Max. lay-up dia. | Φ15 | Φ20 | Φ25 | Φ30 |
| Twisting pitch | 20-200mm | 30-300mm | 30-350mm | 30-350mm |
| No. of rotate | 1000r/min | 800r/min | 600r/min | 550r/min |
| Traversing distance | 2mm-12mm | 3mm-20mm | 3mm-30mm | 3mm-30mm |
Other search items: single twist buncher, single twist machine
