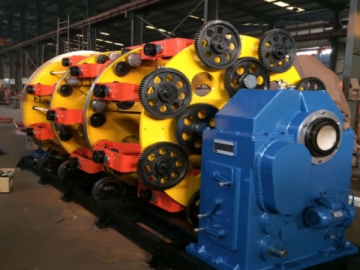

Planetary Stranding Machine
Usage
The planetary stranding machine is a cable and wire making machine used to strand steel, aluminum and copper wires into various cables and other products. This equipment is also used for cable forming of rubber sheathed cables, multi-strand cables and all sorts of communications cables, OPGW cables, etc.
Main Capability Features
1. The strander is capable of high speed operation with steady operating ability thanks to the structural rigidity.
2. All-gear back twisting is used to prevent damaging the wire and increase the reliability of the equipment.
3. The braking mode: pneumatic brake
Main Components
Single reel stand
Reel stand with round bow

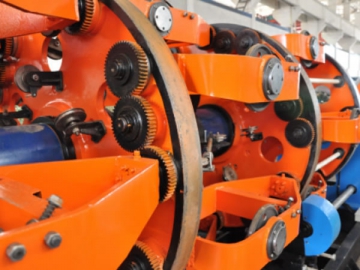

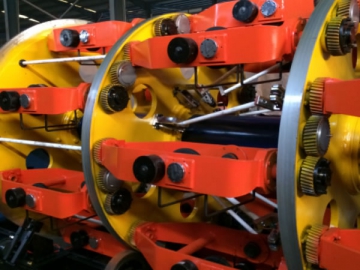

Stranding cage (with filler device)
Double row die holder
High speed nonmental tapping device
Meter counter
Metal tapping device
Caterpillar
Shaft-less take-up
| Bobbin size (mm) | Max. rotation speed(rpm) | Wire dia. (mm) | |||||||||
| Solid conductor | Finished conductor | Al-clad Steel wire | Optical fiber cell | ||||||||
| 6B | 8B | 12B | 16B | 18B | 24B | Aluminum | Copper | ||||
| 400 | 126 | 112 | 98 | 86 | 1.8~5.0 | 1.2~5.0 | 1.2~5.0 | ||||
| 500 | 105 | 93 | 82 | 71 | 1.8~5.0 | 1.2~5.0 | 1.2~5.0 | ||||
| 630 | 85 | 80 | 74 | 70 | 65 | 57 | 1.8~5.0 | 1.2~5.0 | 1.2~5.0 | 1.2~4.5 | 1.5~5.0 |
