Twill Weave Wire Mesh

Request a Quote

View All: http://abmetalwire.com

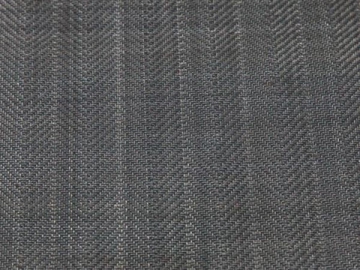

When manufacturing a twill weave wire mesh, each weft wire passes over two and under two warp wires, and each warp wire passes over and under two weft wires. The wire diameter for both (warp and weft) is mostly the same.

In comparison to plain weave wire mesh, the woven wire mesh has a closer structure, stronger body and high durability. It's mostly used for filters with a fineness less than 63 μm.

Technical Parameters of Twill Weave Wire Mesh

Mesh Count Warp x Weft	Wire Dia mm	Wire Dia inch	Aperture mm	Aperture inch	Micron Rating
100 x 100	0.1250	0.0049	0.1295	0.0051	130
120 x 120	0.0939	0.0037	0.1168	0.0046	117
165 x 165	0.0482	0.0019	0.1041	0.0041	104
200 x 200	0.0584	0.0023	0.0685	0.0027	68
250 x 250	0.0533	0.0021	0.0482	0.0019	48
300 x 300	0.0355	0.0014	0.0482	0.0019	48
300 x 300	0.0400	0.0016	0.0431	0.0017	45
325 x 325	0.0355	0.0014	0.0406	0.0016	41
350 x 350	0.0304	0.0012	0.0431	0.0017	43
400 x 400	0.0304	0.0012	0.0330	0.0013	33
500 x 500	0.0254	0.0010	0.0253	0.0010	25
