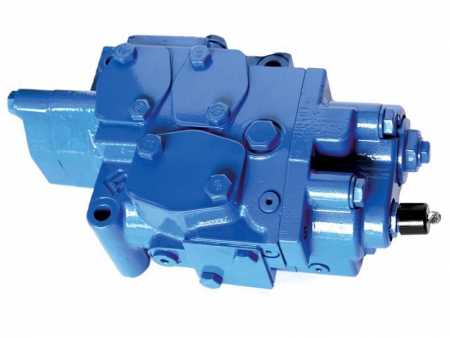

ZLF25E Flow Amplifier
Request a Quote
- Flow amplifier comes in compact design and simple piping layout and can be used to optimize steering capacity.
- Control valve is easy and comfortable to operate.
- Hydraulic valve can provide desired flow rate regardless of changes in the load pressure.
- Control valve supplies flow in proportion to the rate of steering wheel rotation.
- Quick response to signals of pressure changes.
- Equipped with overload charge valve.
- Designed with unloading function at low pressure and high flow to save energy.
Applications
- Loader
- Bulldozer
- Agricultural machinery
- Material handling machinery
Parameters
| Rated pressure (MPa) | 25 |
| Rated flow (L/min) | 160 (maximum flow: 200 L/min) |
| Pressure range of main relief valve (MPa) | 10-25 |
| Pressure range of secondary relief valve (MPa) | 15-31.5 |
| Output flow (L/min) | 80-145 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | -20-100 |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 22 |
Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components
Annual production capacity of 250,000 sets of hydraulic components
Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
