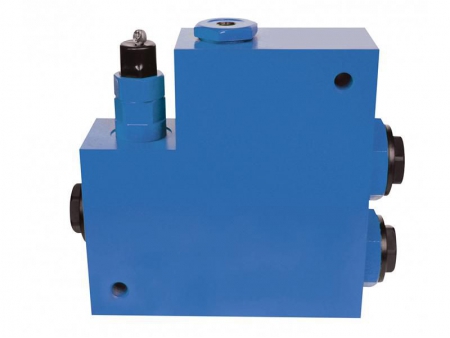

LZF20 Flow Diverter Valve

LZF20  Flow Diverter Valve
LZF20  Flow Diverter Valve
Request a Quote
  • Flow diverter valve can be used to divert flow in three pump hydraulic systems.
  • Diverter valve is load dependent.
  • Control valve can be equipped with other valves to save energy and improve efficiency.
Applications
  • Wheel loader
  • Excavator/loader
  • Material handling machinery
  • Forestry machinery
Parameters
Rated pressure (MPa) 20
Maximum pressure (MPa) 25
Rated flow (L/min) 160
Deferential control pressure (MPa) 0.9
Hydraulic oil Mineral oil (HL, HLP) in accordance with DIN 51 524
Fluid temperature range (℃) -20-100
Viscosity range (mm2/s) 10-380
Fluid cleanliness Not lower than GB/T 14039-2002 level 19/16 or NAS 1638 level 10
Weight (kg) 18
