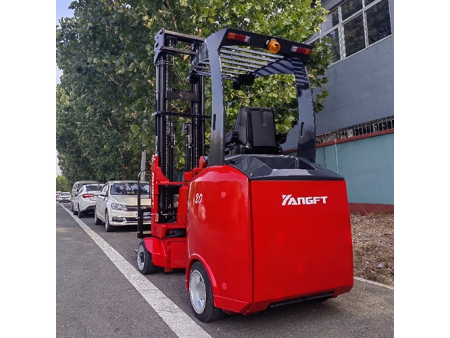

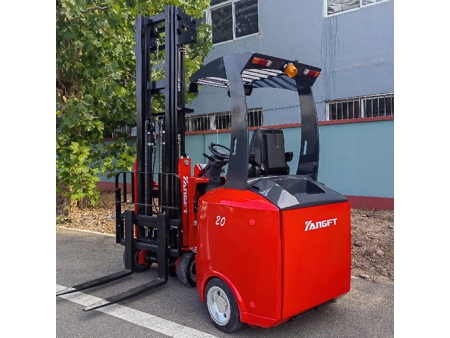

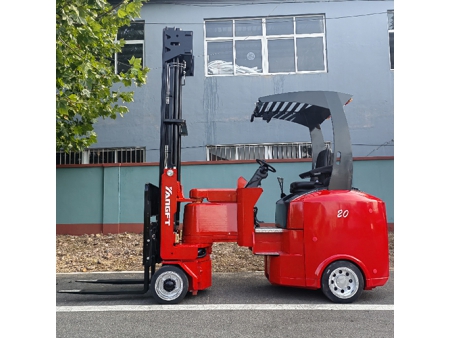

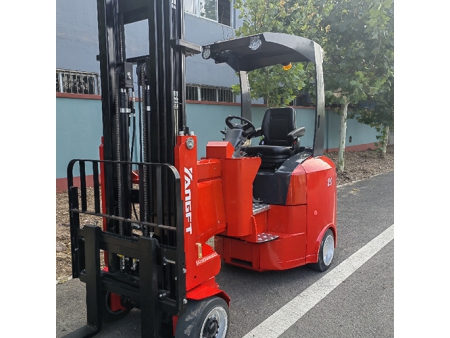

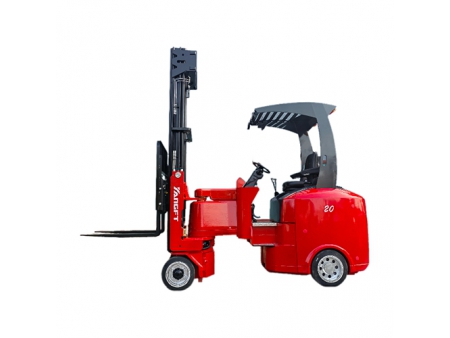

Narrow Aisle Forklift 1.5-3 Tonne
Request a Quote
NA Series
- 1500-3000 kg
- 3000 mm
- 8-12 km/h
Features
- This electric forklift can work in extremely narrow channels with a minimum working width of 1700mm (depending on the forklift model and pallet size).
- The rated load ranges from 1500kg to 3000kg.
- The lifting height of this narrow aisle forklift can reach 12.5 meters.
- With the design of open view mast and double front cylinders, this material handling equipment provides optimal visibility.
- Standard front-end camera makes operation more accurate and efficient.
- A new generation controller from Italy ZAPI is equipped as standard configuration, the use of the latest vector control algorithm leads to increased energy efficiency.
- The large LED instrument panel features functions of power display, timing and fault diagnosis. Human-computer interaction interface enables operation more simple and efficient.
- Large screen instrument: features a spacious display for easy visibility. Ultra-clear display: provides crisp and clear readings. Suspended seat: designed for added comfort and reduced vibrations. Open front overhead guard: ensures safety while maintaining visibility. Rear-mounted battery: simplifies replacement and maintenance. Independent steering motor: enhances maneuverability and control. Patterned solid tires: offer improved traction and durability. Built-in side shifter: allows for easy lateral adjustments of the load. Dual front cylinder design: provides a wide field of view for better visibility during operation.
Forklift Truck Components
The standard front-back camera enhances operational accuracy and efficiency, providing better visibility and precision during use.
Equipped with a new-generation controller from Italy's ZAPI, the forklift truck utilizes the latest vector algorithms for improved energy efficiency and performance.
The new large-screen LED display features a power indicator for easy monitoring of battery status.
The standard suspension seat is designed to minimize driving fatigue, enhancing overall comfort during operation.
Technical Specifications
Item | P | units | | | | ||
Characteristics | Capacity | Rated capacity | Q | kg | 1500 | 2000 | 2500 |
Load Center | Standard load center distance | C | mm | 500 | 500 | 500 | |
System | System[S1] | AC | AC | AC | |||
Power | Battery | lithium battery | Lead-acid/ lithium battery | Lead-acid/ lithium battery | |||
Dimensions | 3 Stage Full Free Lift Mast | Mast lifting height | h3 | mm | 4500-8000 | 4500-10000 | 4500-12500 |
Lifting height of rated weight | mm | 3000 | 3000 | 3000 | |||
Mast tilt angle (forward/rear tilt) | α/β | ° | 1/3 | 1/3 | 2/4 | ||
Forklift Size | Total length (without fork) | L2 | mm | 2715 | 2780 | 2800 | |
Total width | b1/b2 | mm | 1000 | 1250 | 1400 | ||
Overhead guard height | h6 | mm | 2400 | 2400 | 2400 | ||
Fork | T*W*L | mm | 40*122*960 | 40*122*960 | 40*122*960 | ||
Fork carriage width | b3 | mm | 880 | 1080 | 1080 | ||
Fork outside width (mini.) | b4 | mm | 244 | 244 | 244 | ||
Fork outside width (max.) | b5 | mm | 840 | 1040 | 1040 | ||
Mini Stacking Aisle Witdth | Pallet lateral width 800*1200/1000*1200 | mm | 1650/1850 | 1800/2000 | 2000/2200 | ||
Turning Angle | Turning angle | δ | ° | 210 | 210 | 210 | |
Tyre Size | Front | mm | 412*127 | 412*178 | 412*178 | ||
Rear | mm | 457*152 | 457*178 | 457*1178 | |||
Wheelbase | Wheelbase | Y | mm | 1812 | 1895 | 1895 | |
Performance | Travel Speed | Load/no load | km/h | 10/12 | 10/12 | 10/12 | |
Lift Speed | Load/no load | mm/s | 350/430 | 350/430 | 330/400 | ||
Low Speed | Load/no load | mm/s | 400/340 | 400/340 | 400/340 | ||
Gradeability | Load/no load | % | 10/10 | 10/10 | 10/10 | ||
Brake | Mechanical/hydraulic | Hydraulic | Hydraulic | Hydraulic | |||
Manual Brake | Mechanical/hydraulic | Mechanical | Mechanical | Mechanical | |||
Service Weight | With battery | kg | 6500 | 6900 | 7200 | ||
Lithium Battery | Electric tension/capacity (optional) | V/Ah | 80/280 | 80/410 | 80/410 | ||
Lead Acid Battery | Electric tension/capacity | V/Ah | 48/420 | 80/400 | 80/400 | ||
Motor | Drive motor | kW | 10 | 11 | 11 | ||
Lifting motor | kW | 10 | 14 | 14 | |||
Steering motor | kW | 3 | 3 | 3 |
-
