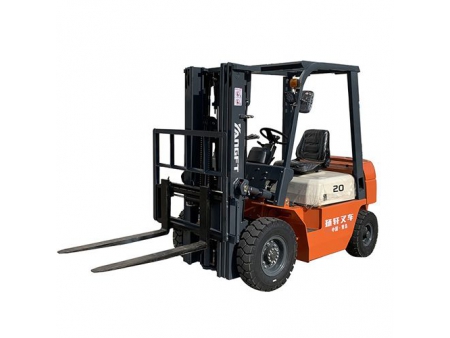

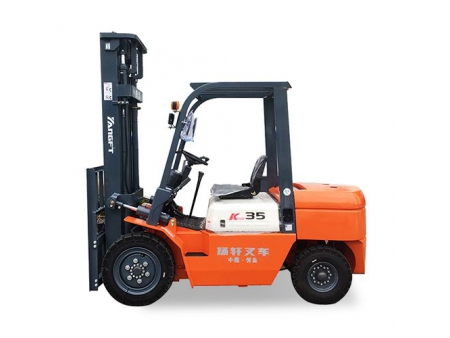

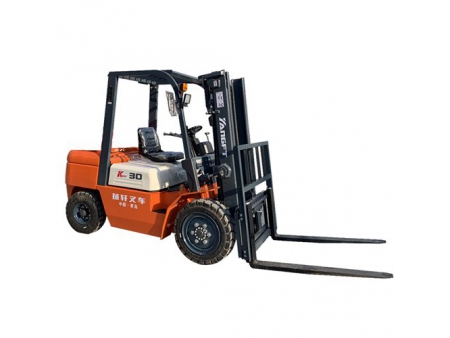

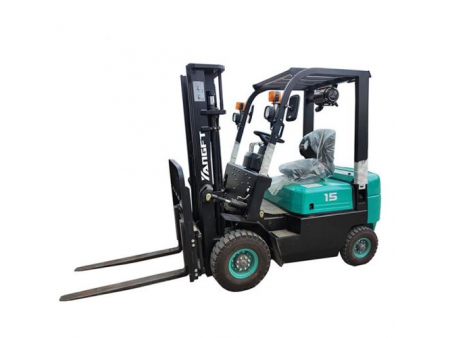

Diesel Forklift 1.5-3.5 Tonne
K Series
The 4-cylinder diesel forklifts have the load capacity of 1.5 to 3.5 tons. The standard lifting height is 3 meters and the maximum customized lifting height is 8 meters. This type of compact forklifts is widely used in limited space, such as factories and workshops.
The K-series diesel forklifts merge modern design with high-performance capability, delivering value and efficiency at a competitive price.
- 1500-3500 kg
- 3000 mm
- 19-20 km/h
- 2190-2470 mm
- The mast is enhanced to be durable and reliable, and designed to provide a wide vision that guarantees driving experience.
- An LCD panel and a user-friendly interplay enable drivers to better control the forklift.
- The new steering wheel adjustment mechanism greatly improves comfort and adjustment reliability.
Material handling operation in factories and workshops
Engine (Optional)
Experience reliability and efficiency with optional advanced engine configurations, featuring renowned brands like ISUZU, Mitsubishi, Kubota, Yanmar, and Euro3/5. These engines deliver efficent performance with eco-conscious and cost-effective benefits. Built for easy maintenance, they’re designed to boost productivity with minimal downtime.
Seat (Optional)
Equipped with an OPS system and ergonomic design, this system offers multiple adjustable features to enhance comfort and reduce operator fatigue during extended use.
Mast (Optional)
Choose from our 2-3 stage standard mast or multi-stage full-free mast options, offering a high degree of customization to suit diverse operational needs.
Load-Backrest
Designed to prevent cargo from slipping, this feature enhances safety throughout operation, providing greater stability and peace of mind.
Control System (Optional)
The integrated dashboard, along with an ergonomic steering wheel and controls, offers safe and comfortable operation.
Overhead Guard
Engineered for enhanced driver safety, with options for extended width and height customization to meet specific operational requirements.
Control Valve
Built with a streamlined design for easy and intuitive operation, with customization options to fit unique needs.
| Model | |||||||||
| Characteristics | Power | Diesel | |||||||
| Capacity | kg | 1500 | 2000 | 2500 | 3000 | 3300 | 3500 | ||
| Load Centre | mm | 500 | 500 | 500 | 500 | 500 | 500 | ||
| Lift Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | ||
| Min. Turning Radius | mm | 2190 | 2190 | 2240 | 2400 | 2470 | 2470 | ||
| Performance | Travel Speed | Load | km/h | 19 | 19 | 19 | 20 | 20 | 20 |
| Lift Speed | Load | mm/s | 500 | 500 | 500 | 480 | 480 | 480 | |
| Max. Traction Power | Load | kW | 17 | 17 | 18 | 20 | 22 | 22 | |
| Dimensions | Total Length | With fork | mm | 3610 | 3600 | 3650 | 3770 | 3870 | 3870 |
| Without fork | mm | 2540 | 2530 | 2580 | 2700 | 2800 | 2800 | ||
| Total Width | mm | 1160 | 1160 | 1160 | 1225 | 1225 | 1225 | ||
| Max. Height | mm | 4220 | 4220 | 4220 | 4265 | 4265 | 4265 | ||
| Mast Height | mm | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | ||
| Chassis | Tyre | Front | 7.00-12 | 7.00-12 | 7.00-12 | 28x9-15 | 28x9-15 | 28x9-15 | |
| Rear | 6.00-9 | 6.00-9 | 6.00-9 | 6.50-10 | 6.50-10 | 6.50-10 | |||
| Wheelbase | mm | 1600 | 1600 | 1600 | 1700 | 1800 | 1800 | ||
| Service Weight | No load | kg | 3530 | 3530 | 3880 | 4350 | 4300 | 4605 | |
| Power | Engine | Model | Quanchai/Xinchai | ||||||
| Rated power | kW/r.p.m | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 | ||
| Rated torque | Nm/r.p.m | 156/1700-1900 | 156/1700-1900 | 156/1700-1900 | 156/1700-1900 | 156/1700-1900 | 156/1700-1900 | ||
| Cylinders | 4 | 4 | 4 | 4 | 4 | 4 | |||
-
