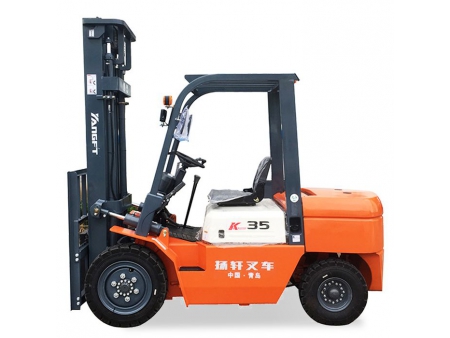

1.5-3.5t Diesel Forklifts/LPG Forklift
1.5-3.5t Diesel Forklifts/LPG Forklift has stylish appearance and can be fitted with power engines of various brands. We can provide a full-line of overhead guards and cabins to tailor your truck to meet the needs of your task.

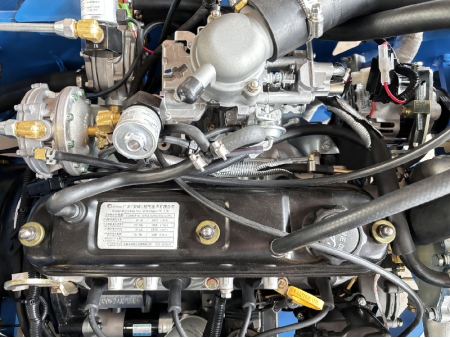

1.5-3.5t Diesel Forklifts/LPG Forklift has single and dual fueling modes. Following are power options: Diesel, Gasoline, LPG, LNG, CNG.
Details-
Air Intake System
Particles can be stopped from getting into air intake system if placed highly. -
Steering System
Hydraulic power steering system alows for quicker steering, and its steering axle made by casting is more advantageous in operation. -
Air Filter
Forklifts are equipped with efficient high-flow air filters. -
Overhead Guard
Overhead guard made by stamping has high strength and safety. -
Pedal
Seperatable pedal is easy to maintain and repair. -
Cabin
Cabin equipped with fan heater and air conditioning is friendly for drivers to operate in hot and cold weather. -
Engine Case
Engine case made by stamping is well-designed, tough and durable. It can be adjusted to 70° for easy maintenance and repair.
Built-in soundproof foam can help to reduce noise of running machine dramatically.
| Model | FD15 | FD18 | FD20 | FD25 | FD30 | FD35 | |||
| General | Load Capacity | kg | 1500 | 1800 | 2000 | 2500 | 3000 | 3500 | |
| Load Centre | mm | 500 | |||||||
| Service Weight | kg | 2820 | 3030 | 3590 | 3790 | 4300 | 4500 | ||
| Chassis | Tyre type | Pneumatic Tire | |||||||
| Front Tyre | 6.50-10-12PR | 7.00-12-12PR | 28×9-15-12PR | ||||||
| Rear Tyre | 5.00-8-10PR | 6.00-9-10PR | 6.50-10-10PR | ||||||
| Track width, front | mm | 890 | 970 | 1000 | |||||
| Track width, rear | 920 | 970 | 970 | ||||||
| Wheelbase | 1400 | 1600 | 1700 | ||||||
| Dimension | Lift Height | 3000 | |||||||
| Mast Tilt Angle | F/R | 6/12 | |||||||
| Mast Lowered Height | mm | 1995 | 2070 | 2115 | |||||
| Mast Extended Height(with backrest) | 3940 | 4070 | 4150 | ||||||
| Length to face of fork(Without fork) | 2295 | 2600 | 2730 | ||||||
| Width over forks | 1086 | 1150 | 1225 | ||||||
| Overhead Guard Height | 2040 | 2070 | 2090 | ||||||
| Min. Turning Radius | 2055 | 2310 | 2440 | ||||||
| Min. Aisle width | 2150 | 2380 | 2490 | ||||||
| Min. Stacking Aisle width | 3675 | 3980 | 4115 | ||||||
| Performance | Max. Travel Speed(Full load/Empty load) | km/h | 14.5/15 | 18/19 | 19/20 | ||||
| Max. Lifting Speed(Full load/Empty load) | mm/s | 440/500 | 530/570 | 510/550 | 450/480 | ||||
| Additional Data | Fuel Tank Capacity | L | 45 | 60 | |||||
| Operating Pressure for Hydraulic System | MPa | 14.5 | 19 | ||||||
