K Series

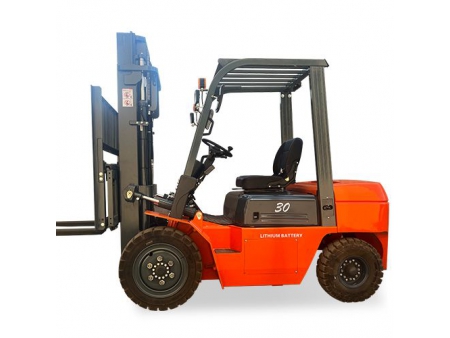

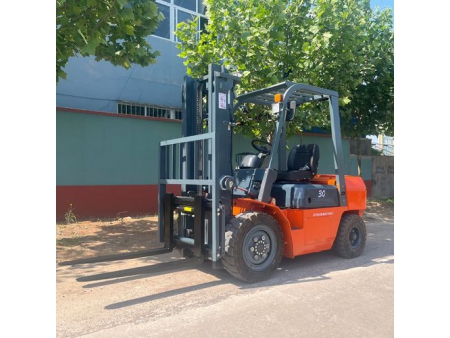

The electric forklift is available with the load capacity of 3 to 3.5 tons. The standard lift height is 3 meters and the maximum customized lift height is 8 meters. With a multi-function LCD, the forklift enables operators to better control the vehicle.

The electric forklift trucks combine the advantages of internationally recognized designs with high-performance efficiency. Their compact size meets the operational needs, while advanced motors and electronic controls enhance maneuverability, stability, and flexibility.

  • 3000-3500 kg
  • 3000 mm
  • 13-14 km/h
  • 2400-2470 mm
Features
  • Sophisticated controllers and motors are employed to prevent short circuit and open circuit.
  • With a small turning radius, the forklift can work in confined space and enable convenient operation.
  • Featuring state-of-the-art controllers and motors that comprehensively prevent short circuits or open circuits.
  • The ergonomic design of the handle positions the operator's hand perfectly, eliminating any additional pressure.
  • The large, easy-to-read multifunction dashboard is ergonomically designed for convenience, making it easy for operators to read.
Applications

Material handling in warehouses, logistics centers and distribution centers.

Forklift Truck Components

Battery Electric Motor (Optional)

The battery and electric motor feature intelligent control for safe and stable operation, ensuring low noise levels while being eco-friendly and energy-efficient, with strong durability for long-lasting performance.

Seat (Optional)

Equipped with an OPS system and ergonomic design, offers multiple adjustable features to reduce operator fatigue and enhance comfort during extended use.

Mast (Optional)

Features standard 2-3 stage masts and multi-stage full free lift masts, offering a high degree of customization to meet various operational requirements.

Load-Backrest

Designed to prevent cargo slippage, this feature enhances safety during operation.

Control System (Optional)

The integrated dashboard, combined with ergonomically designed steering, throttle, and brake controls, ensures safe, convenient, and comfortable operation.

Overhead Guard

This guard is engineered to enhance driver safety and can be customized to meet specific operational needs with increased width and height options.

Control Valve

The control valve's well-thought-out design ensures easy operation and offers customization options to meet various requirements.

Technical Specifications
Model CPD30S CPD30L CPD35
Characteristics Power Battery
Capacity kg 3000 3300 3500
Load Centre mm 500 500 500
Lift Height mm 3000 3000 3000
Min. Turning Radius mm 2400 2470 2470
Performance Travel Speed Load/no load km/h 13/14 13/14 13/14
Lift Speed Load/no load mm/s 290/420 290/420 290/420
Dimensions Total Length Without fork mm 2700 2800 2800
Total Width mm 1225 1225 1225
Max. Lifting Height With backrest mm 4265 4265 4265
Mast Height mm 2100 2100 2100
Chassis Tyre Front 28x9-15 28x9-15 28x9-15
Rear 6.50-10 6.50-10 6.50-10
Wheelbase mm 1700 1800 1800
Service Weight No load kg 4350 4300 4605
Power Battery Electric tension V 76.8
Capacity Ah 230
Motor Drive motor kW 10
Oil pump motor kW 12
What are the advantages of electric forklifts?
  • Electric forklifts deliver outstanding material handling performance, with the advantages of high energy efficiency, stable operation and ease of maintenance.
  • They meet the requirements of load capacity and lift height while realizing zero mission and less noise pollution.
  • They can be used in medical and pharmaceutical industries, as well as frozen food transportation.
  • Distributors Welcome

    We are looking for agents and distributors as sales partners to expand local markets.
