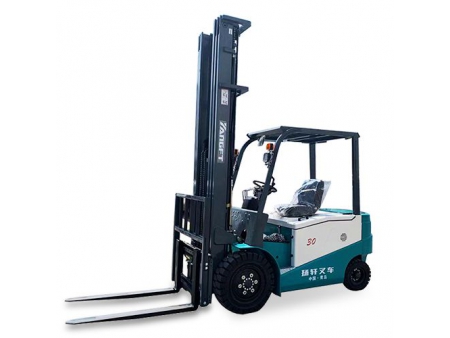

Electric Forklift 1.5-3.5 Tonne

Electric Forklift 1.5-3.5 Tonne
Electric Forklift 1.5-3.5 Tonne
Electric Forklift 1.5-3.5 Tonne
Request a Quote

A Series

The light-duty electric forklifts are designed for different material handling tasks in various work environments, such as limited space and sites with complex terrains. The electric capacity is 500 and 600 Ah.
The electric forklifts are available with optional lead-acid batteries and lithium batteries.
Designed with simplicity, our electric forklifts are quiet and compact, featuring a small turning radius for notable maneuverability. Equipped with customized algorithms, these forklifts deliver high performance, particularly on slopes. They are also easy to maintain, offering dependable and consistent performance.

  • 1500-3500 kg
  • 3000 mm
  • 13-14 km/h
  • 2120-2320 mm
Features
  • The forklift is equipped with a multi-function display screen that shows driving speed, battery level, total time, operator information and warnings.
  • With an integrated design, the forklift is made without any bolts, which increases the total strength by 20%. The design ensures drivers’ safety and enables the forklift to work in uneven and winding paths and carry out demanding and high-intensity material handling tasks.
Applications

Material handling in factories and workshops.

Forklift Truck Components
    1. Unibody Frame

      The boltless, unibody design enhances strength by up to 20%, improving safety and allowing the forklift to navigate uneven surfaces and curved paths, as well as endure long, rigorous transport operations. The mast, constructed from German steel, provides rigidity and durability, while the anti-slip function automatically engages on slopes to ensure operator safety.

      OPS System (Optional)

      The operator presence sensing (OPS) system ensures secure operation by detecting if the operator is correctly positioned on the seat. If the operator shifts to an improper position or leaves the seat, the system immediately halts all driving power and suspends loading or unloading activities.

    1. Comfortable Operating Space

      The ergonomic design reduces operator fatigue during long shifts, increases working space, and enhances overall efficiency. The adjustable steering wheel offers convenience and can be customized to the operator's preferred position.

    1. Intelligent Multi-Function Display

      The multifunction display provides a comprehensive overview, showcasing driving speed, battery charge, total operating hours, operator information, and all warnings in a compact and easy-to-read format.

Technical Specifications
Model CPD15 CPD20 CPD25 CPD30 CPD35
Characteristics Power Battery
Capacity kg 1500 2000 2500 3000 3500
Load Centre mm 500 500 500 500 500
Lift Height mm 3000 3000 3000 3000 3000
Min. Turning Radius mm 2120 2120 2120 2320 2320
Performance Travel Speed Load/no load km/h 13/14 13/14 13/14 13/14 13/14
Lift Speed Load/no load mm/s 270/400 270/400 260/400 280/360 280/360
Dimensions Total Length Without fork mm 2300 2300 2300 2520 2520
Total Width mm 1180 1180 1180 1225 1225
Max. Height mm 4040 4040 4040 4210 4210
Mast Height mm 2035 2035 2035 2065 2065
Chassis Tyre Front 700-12 700-12 700-12 23x9-10 23x9-10
Rear 18x7-8-14PR 18x7-8-14PR 18x7-8-14PR 18x7-8-14PR 18x7-8-14PR
Wheelbase mm 1500 1500 1500 1700 1700
Service Weight No load kg 3900 3900 4050 4900 5400
Power Battery Electric tension V 48 80
Capacity Ah 600 500
Motor Drive motor kW 12 14
Hydraulic motor kW 11 13
Why are electric forklifts getting popular?
  • With less exhaust emission, the electric forklift is suitable for indoor operation that has requirement for exhausts, such as warehouses.
  • Without gearbox and engine, the electric forklift requires fewer maintenance expenses.
  • The small turning radius enables the forklift to work in limited space.
What are the advantages of lithium batteries?
  • Using lithium batteries, it costs less to maintain the forklift and it has longer service life.
  • Lithium batteries enable flexible charging, which means the forklift can work before reaching full charge.
