Thin-film-transistor liquid-crystal display Module

STONE Tech’s civil TFT LCD display module (STVC series) features a service life of 10000 hours and a size range of 3.5”~10.1”, allowing it to meet most indoor application requirements. With an affordable price, this product series is ideal for beauty equipment, vending machines, coffee makers, and other personal or civil applications.

Application

HMI panel in beauty machine

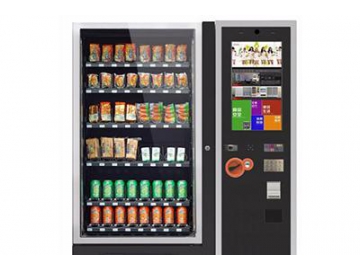

HMI panel in vending machine

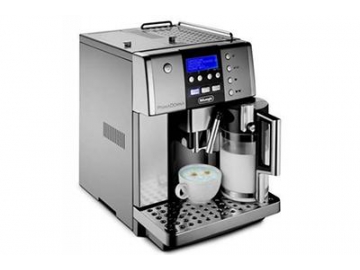

HMI panel in coffee maker

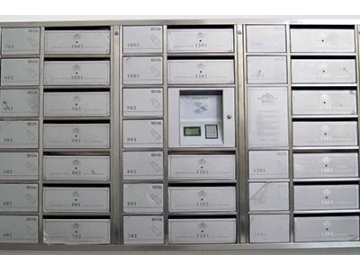

HMI panel in smart lockers

Recommendation

Size (inch)	Model	Colour	Resolution	Voltage(V)	Perpherals	Interface	Brightness	Temp(℃)	Viewing Area (mm)	Power (W)
3.5''		65K	320*480 (4:3)	DC 12.0-15	Touch-Screen &KB&RTC	RS232/RS485/TTL/USB	300cd/m²;	-20℃/+70℃	49.0*73.4	0.8
		(16 bit)
4.3''		65K	480*272 (16:9)	DC 12.0-35	Touch-Screen &KB&RTC	RS232/RS485/TTL/USB	350cd/m²;	-20℃/+70℃	95.0*53.9	1
		(16 bit)
5''		65K	480*272 (4:3)	DC 12.0-35	Touch-Screen &KB&RTC	RS232/RS485/TTL/USB	350cd/m²;	-20℃/+70℃	110.9*62.8	1.3
		(16 bit)
5''		65K	800*480 (16:9)	DC 12.0-35	Touch-Screen &KB&RTC	RS232/RS485/TTL/USB	400cd/m²;	-20℃/+70℃	108.0*64.8	2.4
		(16 bit)
5.6''		65K	640*480 (16:9)	DC 12.0-35	Touch-Screen &KB&RTC	RS232/RS485/TTL/USB	300cd/m²;	-20℃/+70℃	112.9*884.7	2.4
		(16 bit)
7''		65K	800*480(16:9)	DC 12.0-35	Touch-Scree	RS232/RS485/TTL/USB	400cd/m²;	-20℃/+70℃	154.1*85.9	2.6
		(16 bit)			n&KB&RTC
7''		65K	1024*600 (4:3)	DC 12.0-35	Touch-Screen &KB&RTC	RS232/RS485/TTL/USB	280cd/m²;	-20℃/+70℃	154.1*85.9	3
		(16 bit)
8''		65K	800*600 (16:9)	DC 12.0-35	Touch-Screen &KB&RTC	RS232/RS485/TTL/USB	300cd/m²;	-20℃/+70℃	162.0*121.5	3
		(16 bit)
10.1''		65K	1024*600 (4:3)	DC 12.0-35	Touch-Screen &KB&RTC	RS232/RS485/TTL/USB	300cd/m²;	-20℃/+70℃	222.7*125.3	3
		(16 bit)
