Industrial Type TFT LCD Display Module
Request a Quote
Thin-film-transistor liquid-crystal display Module
STONE Tech’s industrial TFT LCD display module (STVI series) has an extended lifetime of 30000 hours, a size ranging from 3.5” to 10.4” and an operating temperature range of -20°C ~ +70°C. It will run properly even under less than stable conditions.
The reliable quality and competitive price make the industrial TFT LCD display module perfect for medical and beauty equipment, electric equipment and precision instruments.
Application
- HMI Panel in beauty equipment

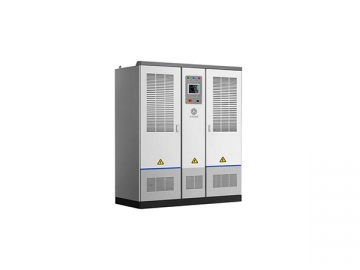

- HMI Panel in electricity equipment

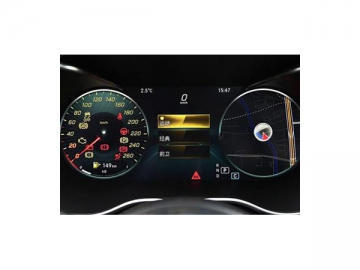

- HMI Panel for dashboard

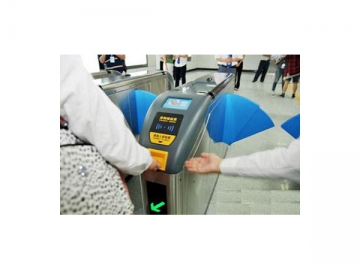

- HMI Panel in auto-door
Recommended products
| Size (inch) | Model | Colour | Resolution | Voltage(V) | Perpherals | Interface | Brightness | Temp(℃) | Viewing Area (mm) | Power (W) |
| 3.5'' | 65K | 320*240(4:3) | DC 6.0-40 | Touch-Screen &KB&RTC | RS232/USB | 400cd/m2; | -20℃/+70℃ | 70.1*52.6 | 0.8 | |
| (16 bit) | ||||||||||
| 4.3'' | 65K | 480*272(16:9) | DC 6.0-35 | Touch-Screen &KB&RTC | RS232/USB | 400cd/m2; | -20℃/+70℃ | 95.0*53.9 | 1 | |
| (16 bit) | ||||||||||
| 5'' | 65K | 480*272(16:9) | DC 6.0-35 | Touch-Screen &KB&RTC | RS232/USB | 400cd/m2; | -20℃/+70℃ | 110.9*62.8 | 1.3 | |
| (16 bit) | ||||||||||
| 5'' | 65K | 800*480(16:9) | DC 6.0-35 | Touch-Screen &KB&RTC | RS232/USB | 400cd/m2; | -20℃/+70℃ | 108.0*64.8 | 2.4 | |
| (16 bit) | ||||||||||
| 5.6'' | 65K | 640*480(4:3) | DC 6.0-40 | Touch-Screen &KB&RTC | RS232/USB | 300cd/m2; | -20℃/+70℃ | 112.9*84.7 | 2.2 | |
| (16 bit) | ||||||||||
| 7'' | 65K | 800*480(16:9) | DC 6.0-35 | Touch-Screen &KB&RTC | RS232/USB | 400cd/m2; | -20℃/+70℃ | 154.1*85.9 | 2.6 | |
| (16 bit) | ||||||||||
| 7'' | 65K | 1024*600(16:9) | DC 6.0-35 | Touch-Screen &KB&RTC | RS232/USB | 500cd/m2; | -20℃/+70℃ | 154.1*85.9 | 3 | |
| (16 bit) | ||||||||||
| 8'' | 65K | 800*600(4:3) | DC 6.0-40 | Touch-Screen &KB&RTC | RS232/USB | 400cd/m2; | -20℃/+70℃ | 162.0*121.5 | 2.8 | |
| (16 bit) | ||||||||||
| 8'' | 65K | 1024*768(4:3) | DC 6.0-40 | Touch-Screen &KB&RTC | RS232/USB | 400cd/m2; | -20℃/+70℃ | 162.0*121.5 | 3 | |
| (16 bit) | ||||||||||
| 10.1'' | 65K | 1024*600(16:9) | DC 6.0-40 | Touch-Screen &KB&RTC | RS232/USB | 500cd/m2; | -20℃/+70℃ | 222.7*125.3 | 3 | |
| (16 bit) | ||||||||||
| 10.4'' | 65K | 800*600(4:3) | DC 6.0-40 | Touch-Screen &KB&RTC | RS232/USB | 350cd/m2; | -20℃/+70℃ | 211.2*158.4 | 3 | |
| (16 bit) |
STONE TFT Display Module Selection Recommendation
As for applications with different demands, STONE Tech specially provides industrial, advanced and civil types of TFT module for customers with focus on quality, performance and cost.
| Main Differences | ||||||||||
| CPU | 32bit Cortex-M4 | |||||||||
| All of Components | Import product (the best components in the world) | TTL Panel（from shenzhen od China） | ||||||||
| TFT Screen Class | A class industrial TFT screen (5% TFT with no more than 3 dead pixels in the nconspicuous area.) | A+ class industrial TFT screen (All TFT with no dead pixels) | A class industrial TFT screen (5% TFT with no more than 3 dead pixels in the nconspicuous area.) | |||||||
| TFT Backlight Life | 30000 hours | 50000 or 100000 hours | 20000 hours | |||||||
| Brightness | Normal Industrial Standard | High-Brightness (Visible in Sunlight) | Normal Industrial Standard | |||||||
| Flash Memory | 128MB-1GB | |||||||||
| Voltage | DC 6.0-35 V | DC 6.0-40 V | DC 6.0-35 V | |||||||
| Operation Temperature | -20℃ to +70℃ | |||||||||
| PCB Surface Coating | None | |||||||||
| Duration of Aging Test | 24 hours | 48 hours | 24 hours | |||||||
| Warranty Period | 3 year (Replace by new one) | None | ||||||||
| Price | High Cost Performance | 30%-50% more than BasicType | Cheap | |||||||
| Application | Satisfy the international standard of industry | Meet the advanced requirement | Civil field | |||||||
