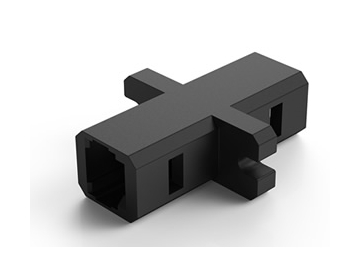

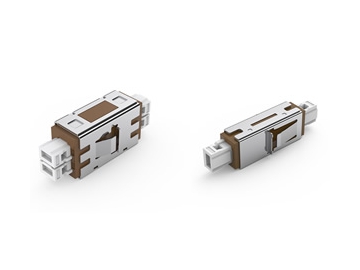

Fiber Optic Adapter
Applications
1. Optical fiber communication
2. Fiber to the home (FTTH) data processing network
3. Telecommunication equipment
4. LAN (local area network)
5. CATV and closed-circuit television
| Product type | FC | SC | LC | ST | E2000 |
| Insertion loss (dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Repeatability (dB) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Interchangeability (dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Ferrule material | Ceramics | ||||
| Insert and draw frequency (times) | ≥500 | ||||
| Tension resistance (g) | 200~600 | ||||
| Working temperature (℃) | -40~80 | ||||
Functional characteristics
1. Outstanding repeatability and interchangeability
2. Excellent high and low temperature resistance, long service life
3. With a high quality ceramic ferrules, the insertion loss is low.
4. High precision of the reflection loss
Xinhaixun offers customers a variety of fiber optic passive components, a specialized fiber optic adapter manufacturer and supplier, we provide several types like FC fiber adapter, SC fiber adapter, LC optical adapter, ST optical adapter. we are offering a wide range of fiber beam splitters, optical patch cable, optical coupler, WDM, MPO connector. Use quality manufacturing and testing equipment, we provide quality optical fiber adapter component for fiber optic communication and networking applications.
