G5 Corrugated Board Converting Machine

G5 Corrugated Board Converting Machine
Request a Quote

(G5 Full Computer Control High Speed Printer Slotter Die Cutter)

Components

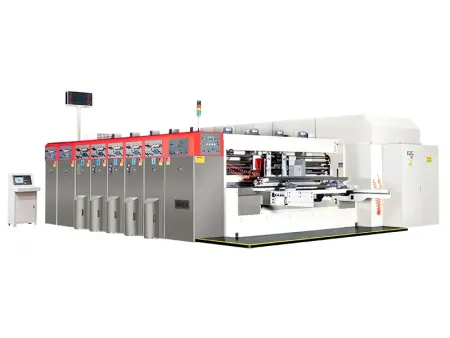

G5 corrugated board converting machine is composed of 4 parts, which are the sheet feeder, the corrugated box printer, the corrugated box slotter and the die cutter.

This carton making machine can complete multi-color cardboard printing, cutting, creasing, trimming, slotting, angle cutting, die cutting, drilling and other multi-channel processes in one time.

Workflow of the corrugated box making machine

The sheet feeder adopts the servo drive and the feed roller rotates to transfer the cardboard to the corrugated box printer for printing. After the cardboard reaches the corrugated box printer, the anilox roller and the rubber roller transfer the ink to the printing plate on the printing roller and the cardboard is transferred stably by the sheet feed shaft, then the pattern is accurately printed on the cardboard. Finally, the cardboard is transfered to the slotter for slotting or the die cutter for die cutting to meet the customers's requirements in the shape of the carton.

Features
  • The sheet feeder adopts servo drive (US Emerson), so the sheet feeding is high precision and the system is stable.
  • The corrugated box making machine adopts variable frequency control to control the air volume, which can be adjusted according to different speed.
  • This carton machine has the function of automatically setting to zero.
  • Controlled by computer, the machine can be adjusted by one-button and help remember 999 orders.
  • This carton equipment has ink lacking alarming device and when it lacks ink, it will stop feeding, which can prevent damage to the machine due to the lack of ink while high speed running.
  • The box making machine adopts gear oil separation device, so it can ensure that the gear oil in each part are equal.
  • The carton making machine can alarm fault accurately and keep safe production in continuous working.
  • The wheel axles are powered by electric and the gap between the wheel axles can be adjusted by computer settings and remembered by the computer storage.
Parameters
Model JF0820 JF0920 JF1224 JF1424 JF1228 JF1428 JF1628 JF1632 JF2236
Max Speed(pcs/min) 250 250 200 200 180 160 160 150 110
Max feeding size (mm) 800×2050 900×2100 1200×2500 1400×2500 1200×2900 1400×2900 1600×2900 1600×3300 2200×3700
Min feeding size (mm) 260×600 280×600 370×700 370×700 370×700 390×700 450×850 450×850 650×800
skip feeding size (mm) 1200×2050 1200×2050 1600×2500 1600×2500 1600×2900 1600×2950 2000×2850 2000×3200 2400×3200
Max print size (mm) 750×2000 850×2000 1150×2400 1350×2400 1150×2800 1350×2800 1550×2800 1550×32000 2150×3600
Min slotting gap(reverse knife) 230×70×230×70 230×70×230×70 240×70×240×70 250×90×250×90 240×70×240×70 250×90×250×90 280×120×280×120 280×120×280×120 280×120×280×120
Printing plate thickness (mm) 7.2
Board thickness 1.5-12

Jiufeng company as a full experienced corrugated carton making equipment manufacturer, we provide complete corrugated cardboard box machine line, including corrugated cardboard printer, cardboard die cutter, cardboard folder and gluer. The corrugated cardboard machines we made with plenty of experience since 1996, we are sure to offer customers high quality corrugated carton equipment and corrugated cardboard solutions for customers.
