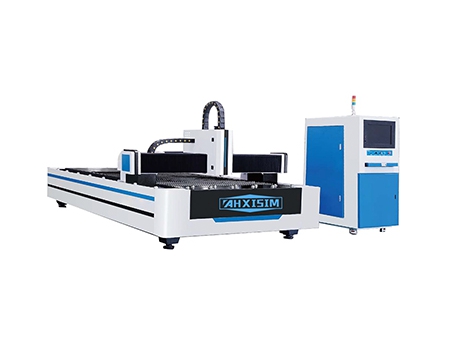

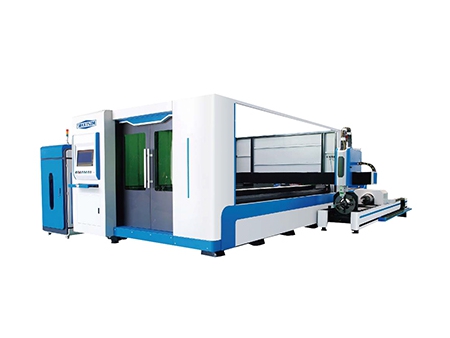

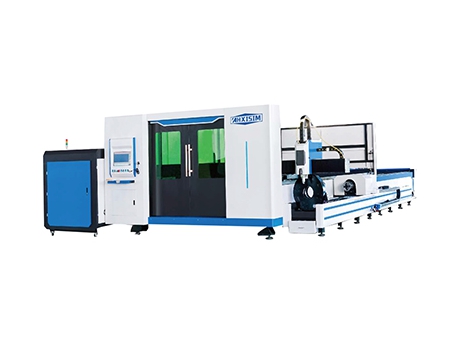

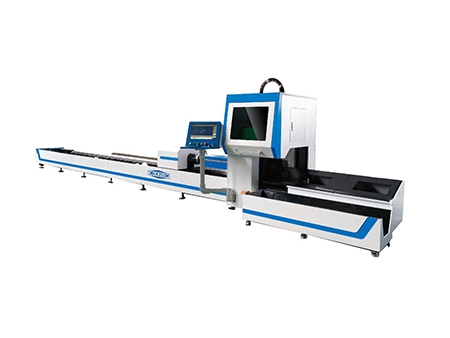

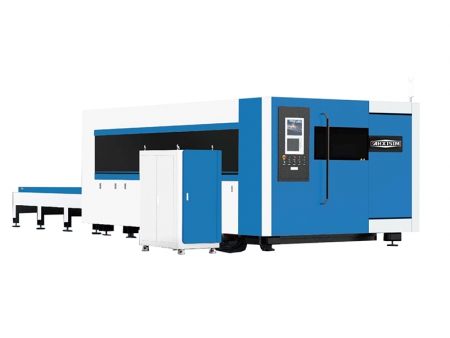

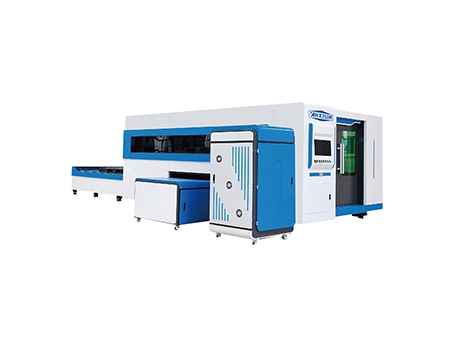

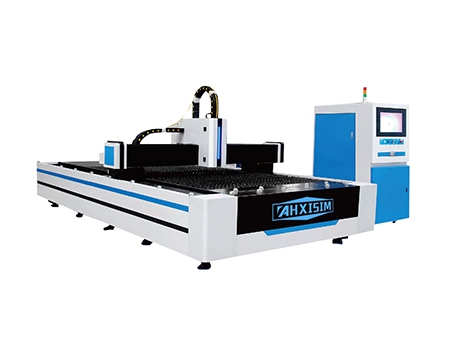

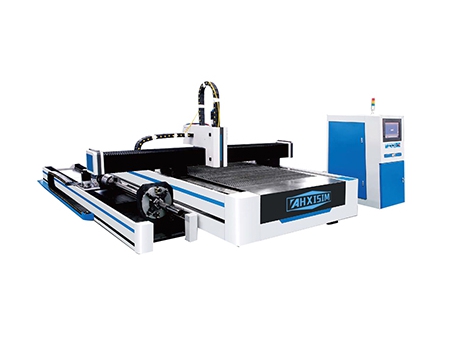

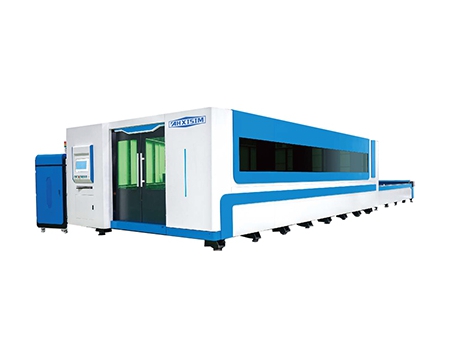

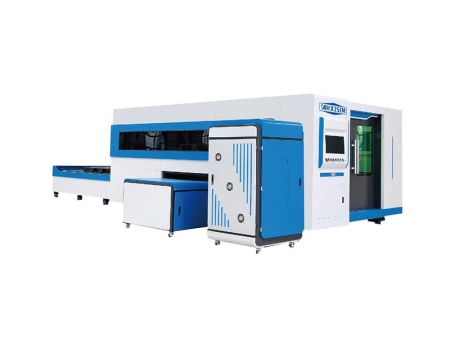

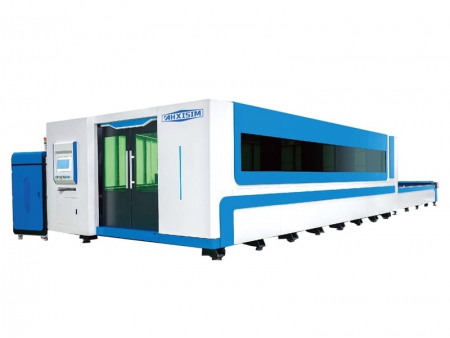

Laser Cutting Machine
We offer a wide range of laser cutting machines, catering to diverse industries such as sheet metal manufacturing, automotive parts, hardware tools, sports equipment, advertising and decoration, medical devices, kitchen and bathroom fixtures, precision instruments, mobile and fiber-optic communications, aerospace components, craft and gift production, packaging and printing, and agricultural machinery.
Material | Thickness (mm) | Speed (m/ min) | Power (W) | Assist gas | Air pressure (bar) | Nozzle aperture (mm) | Focus position (mm) | Cutting height (mm) |
Carbon steel | 1 | 20 | 1500 | N₂/ Air | 10 | 1.5 | 0 | 1 |
2 | 5 | 1500 | O₂ | 2 | 1.2 | 3 | 0.8 | |
3 | 3.6 | 1500 | O₂ | 0.6 | 1.2 | 3 | 0.8 | |
4 | 2.5 | 1500 | O₂ | 0.6 | 1.2 | 3 | 0.8 | |
5 | 1.8 | 1500 | O₂ | 0.6 | 1.2 | 3 | 0.8 | |
6 | 1.4 | 1500 | O₂ | 0.6 | 1.5 | 3 | 0.8 | |
8 | 1.2 | 1500 | O₂ | 0.6 | 1.5 | 3 | 0.8 | |
10 | 1 | 1500 | O₂ | 0.6 | 2.0 | 2.5 | 0.8 | |
12 | 0.8 | 1500 | O₂ | 0.6 | 2.5 | 2.5 | 0.8 | |
14 | 0.65 | 1500 | O₂ | 0.6 | 3.0 | 2.5 | 0.8 | |
16 | 0.5 | 1500 | O₂ | 0.6 | 3.0 | 2.5 | 0.8 | |
Stainless steel | 1 | 20 | 1500 | N₂ | 10 | 1.5 | 0 | 0.8 |
2 | 7 | 1500 | N₂ | 12 | 2.0 | -1 | 0.5 | |
3 | 4.5 | 1500 | N₂ | 12 | 2.5 | -1.5 | 0.5 | |
5 | 1.5 | 1500 | N₂ | 14 | 3.0 | -2.5 | 0.5 | |
6 | 0.8 | 1500 | N₂ | 16 | 3.0 | -3 | 0.5 | |
Aluminum | 1 | 18 | 1500 | N₂ | 12 | 1.5 | 0 | 0.5 |
2 | 6 | 1500 | N₂ | 14 | 2.0 | -1 | 0.5 | |
3 | 2.5 | 1500 | N₂ | 14 | 2.5 | -1.5 | 0.5 | |
4 | 0.8 | 1500 | N₂ | 16 | 3.0 | -2 | 0.5 |
Material | Thickness (mm) | Speed (m/min) | Power (W) | Assist Gas | Air Pressure (bar) | Nozzle Aperture (mm) | Focus Position (mm) | Cutting Height (mm) |
Carbon steel | 1 | 25 | 2000 | N₂/ | 10 | 1.5 | 0 | 1 |
2 | 9 | 2000 | Air | 10 | 2 | -1 | 0.5 | |
2 | 5.2 | 2000 | O₂ | 1.6 | 1 | 3 | 0.8 | |
3 | 4.2 | 2000 | O₂ | 0.6 | 1 | 3 | 0.8 | |
4 | 3 | 2000 | O₂ | 0.6 | 1 | 3 | 0.8 | |
5 | 2.2 | 2000 | O₂ | 0.6 | 1.2 | 3 | 0.8 | |
6 | 1.8 | 2000 | O₂ | 0.6 | 1.2 | 3 | 0.8 | |
8 | 1.3 | 2000 | O₂ | 0.5 | 2 | 2.5 | 0.8 | |
10 | 1.1 | 2000 | O₂ | 0.5 | 2 | 2.5 | 0.8 | |
12 | 0.9 | 2000 | O₂ | 0.5 | 2.5 | 2.5 | 0.8 | |
14 | 0.8 | 2000 | O₂ | 0.5 | 3 | 2.5 | 0.8 | |
16 | 0.7 | 2000 | O₂ | 0.6 | 3.5 | 2.5 | 0.8 | |
18 | 0.5 | 2000 | O₂ | 0.6 | 4 | 3 | 0.8 | |
20 | 0.4 | 2000 | O₂ | 0.6 | 4 | 3 | 0.8 | |
Stainless steel | 1 | 28 | 2000 | N₂ | 10 | 1.5 | 0 | 0.8 |
2 | 10 | 2000 | N₂ | 12 | 2 | -1 | 0.5 | |
3 | 5 | 2000 | N₂ | 12 | 2 | -1.5 | 0.5 | |
4 | 3 | 2000 | N₂ | 14 | 2.5 | -2 | 0.5 | |
5 | 2 | 2000 | N₂ | 14 | 3 | -2.5 | 0.5 | |
6 | 1.5 | 2000 | N₂ | 14 | 3 | -3 | 0.5 | |
8 | 0.6 | 2000 | N₂ | 16 | 3 | -4 | 0.5 | |
Aluminum | 1 | 20 | 2000 | N₂ | 12 | 1.5 | 0 | 0.8 |
2 | 10 | 2000 | N₂ | 12 | 2 | -1 | 0.5 | |
3 | 4 | 2000 | N₂ | 14 | 2 | -1.5 | 0.5 | |
4 | 1.5 | 2000 | N₂ | 14 | 2.5 | -2 | 0.5 | |
5 | 0.9 | 2000 | N₂ | 16 | 3 | -2.5 | 0.5 | |
6 | 0.6 | 2000 | N₂ | 16 | 3 | -3 | 0.5 |
Material | Thickness (mm) | Speed (m/min) | Power (W) | Assist Gas | Air Pressure (bar) | Nozzle Aperture (mm) | Focus Position (mm) | Cutting Height (mm) |
Carbon steel | 1 | 35 | 3000 | N₂/ | 10 | 1.5 | 0 | 1 |
2 | 20 | 3000 | Air | 10 | 2 | 0 | 0.5 | |
2 | 5.5 | 1200 | O₂ | 1.6 | 1 | 3 | 0.8 | |
3 | 4 | 2000 | O₂ | 0.6 | 1 | 4 | 0.8 | |
4 | 3.5 | 2400 | O₂ | 0.6 | 1 | 4 | 0.8 | |
5 | 3.2 | 2400 | O₂ | 0.6 | 1.2 | 4 | 0.8 | |
6 | 2.7 | 3000 | O₂ | 0.6 | 1.2 | 4 | 0.8 | |
8 | 2.2 | 3000 | O₂ | 0.6 | 1.2 | 4 | 0.8 | |
10 | 1.5 | 3000 | O₂ | 0.6 | 1.2 | 4 | 0.8 | |
12 | 1 | 2400 | O₂ | 0.6 | 3 | 4 | 0.8 | |
14 | 0.9 | 2400 | O₂ | 0.6 | 3 | 4 | 0.8 | |
16 | 0.75 | 2400 | O₂ | 0.6 | 3.5 | 4 | 0.8 | |
18 | 0.65 | 2400 | O₂ | 0.6 | 4 | 4 | 0.8 | |
20 | 0.6 | 2400 | O₂ | 0.6 | 4 | 4 | 0.8 | |
22 | 0.55 | 2400 | O₂ | 0.6 | 4 | 4 | 0.8 | |
Stainless steel | 1 | 45 | 3000 | N₂ | 10 | 1.5 | 0 | 0.8 |
2 | 24 | 3000 | N₂ | 12 | 2 | 0 | 0.5 | |
3 | 10 | 3000 | N₂ | 12 | 2.5 | -0.5 | 0.5 | |
4 | 6.5 | 3000 | N₂ | 14 | 2.5 | -1.5 | 0.5 | |
5 | 3.6 | 3000 | N₂ | 14 | 3 | -2.5 | 0.5 | |
6 | 2.7 | 3000 | N₂ | 14 | 3 | -3 | 0.5 | |
8 | 1.2 | 3000 | N₂ | 16 | 3.5 | -4.5 | 0.5 | |
10 | 0.8 | 3000 | N₂ | 16 | 4 | -6 | 0.5 | |
Aluminum | 1 | 30 | 3000 | N₂ | 12 | 1.5 | 0 | 0.8 |
2 | 18 | 3000 | N₂ | 12 | 2 | 0 | 0.5 | |
3 | 8 | 3000 | N₂ | 14 | 2 | -1 | 0.5 | |
4 | 6 | 3000 | N₂ | 14 | 2.5 | -2 | 0.5 | |
5 | 3.2 | 3000 | N₂ | 16 | 3 | -3 | 0.5 | |
6 | 2 | 3000 | N₂ | 16 | 3 | -3.5 | 0.5 | |
8 | 0.9 | 3000 | N₂ | 16 | 3.5 | -4 | 0.5 |
- High Precision

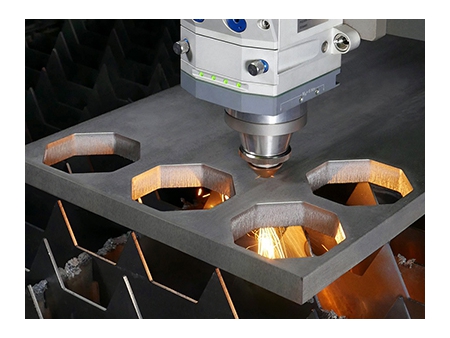

Utilizes a laser beam for ultra-fine cutting, delivering smooth edges without the need for secondary processing.
- High Speed
Capable of rapid cutting, efficiently handling large-scale production and improving overall productivity.
- Flexibility
Suitable for cutting various metal materials, including steel and aluminum alloys, while enabling intricate and complex shapes to meet diverse processing needs.
- Non-Contact Cutting
A non-contact cutting method that applies no physical force on the workpiece, preventing deformation and preserving the material’s original properties and appearance.
- High Automation
Equipped with an advanced CNC system, allowing for fully automated cutting, enhancing efficiency and ease of operation.
