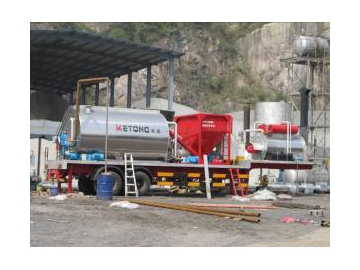

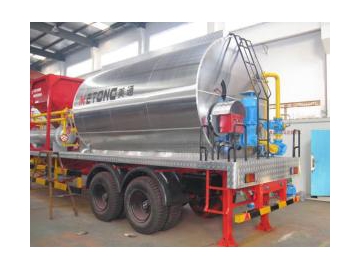

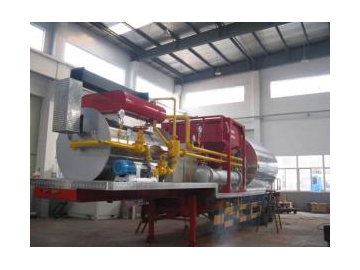

Mobile Rubber Asphalt Plant
AR100M mobile rubber bitumen plant is a new product that is designed for rubber bitumen production. Using waste tire rubber powder and rubber bitumen as pavement material can not only effectively extend the service life of the bituminous pavement but also reduce the environmental pollution caused by waste tires.
Advantages
1) Structure
① All production units are reasonably arranged in a semi-trailer tractor, so frequent removing of this rubber bitumen equipment is no longer a problem for customers.
② Support legs are installed in the front and back of the semi-trailer chassis to effectively protect tires during operation.
2) Performance
① The built-in thermal conduction oil boiler (300,000kcal/h) can provide the equipment with sufficient heat energy, eliminating the need for external heat source.
② The specially designed high speed mixer ensures uniform mixing of rubber powder and base bitumen.
③ Double heating (built-in coil and imported burner) results in rapid heating of the rubber bitumen, thus guaranteeing the production.
④ The mobile rubber bitumen plant adopts an imported rubber bitumen pump, which ensures stable delivery of high-viscosity rubber bitumen.
| Item | Specification | Unit |
| Model | AR100M | |
| Name | Mobile Rubber Asphalt Plant | |
| Productivity | 8 | T/h |
| Total Power of Electrical Equipment | ≤60 | kw |
| Structure | Semi-trailer | |
| Outline Dimensions of Semi-trailer | 12970×2500×1291 | mm |
| Outline Dimensions | 12970×2500×3900 | mm |
| Mixture Ratio | Rubber Powder: 10%~20% Bitumen: 90%~80% |

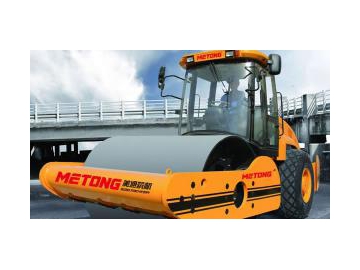

- The single drum vibratory rollers we produce are full hydraulic single drive road rollers adopting SAUER driving and vibration systems to guarantee reliable performance.
-
-
- The single drum vibratory roller features high automation and manoeuvrability due to the full hydraulic transmission and full electrical-hydraulic control systems.
-
-
- The vibratory bearings we use in the single drum vibratory rollers are high quality imported products and the electric plug connectors are resistant to moisture, salt spray and fungus.
-
-

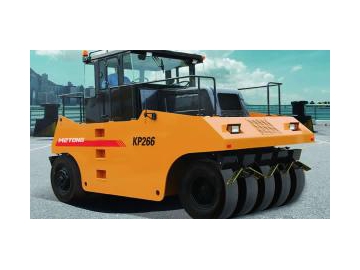

- As a full hydraulic roller, our KP266 pneumatic tyred roller adopts SAUER hydraulic driving system, which can achieve stepless speed regulation and enhance the compaction effects to better meet the road construction requirements.
