Mobile Screening Plant

Request a Quote

Original: http://wastemachineltd.com/3-4-mobile-screening-plant.html

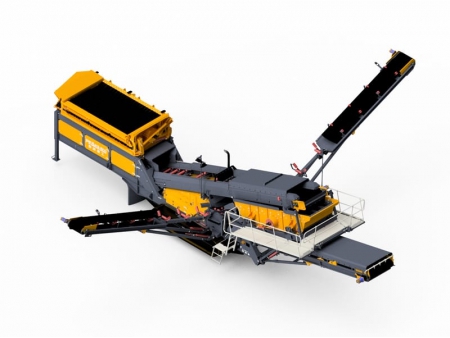

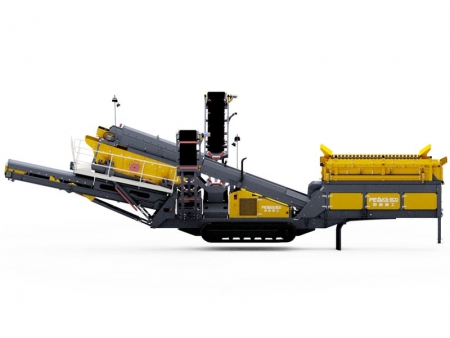

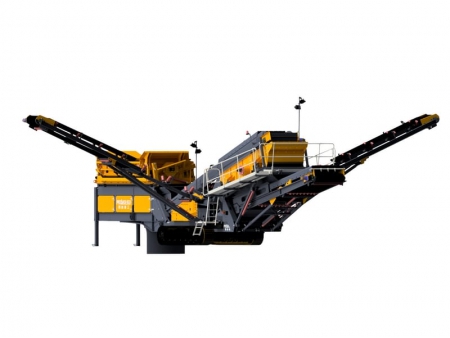

PEAKS-ECO mobile screening plant is a highly efficient and technologically advanced machine offering full autonomous operation. Designed as a compact, mobile screening plant, it can easily access processing sites and perform screening tasks under a variety of working conditions. It is well-suited for applications such as quarrying, demolition waste sorting, mining, and more.

Equipped with a track system, this mobile screening plant provides excellent mobility and stability. Its high-capacity vibrating screen, supported by an integrated generator, ensures reliable and efficient screening performance, making it an ideal solution for all screening needs.

Key Features

Power System: Offers three power drive options: external mains electricity, diesel-electric (E), and full hydraulic (H).

Mechanical Structure: Features a foldable and compact design for easy and rapid transportation and relocation.

Control System: Provides multiple control options, including hydraulic control and wireless remote control.

Other Features: Unique screen box structure with a proprietary curved screen design that promotes material dispersion, enhancing screening efficiency. Various screen types and additional optional configurations are available to suit different materials and operating conditions.

Technical Specifications

Model	S-1301	S-1301H	S-1301F	SK-6206	SK-6206C1	SK-6206H	SK-931
Max. particle size (mm)	150	150	150	150	150	500	150
Screening area (mm)	6500×2000	6500×2000	6500×2000	6000×2000	6000×2000	5000×1550	6000×1550
Number of screen decks	3	3	3	3	3	2	3
Main screen power (kW)	26	26	/	30	30	/	/
Capacity (t/h)	180-350	180-350	180-350	200-500	200-500	200-500	180-350
Working power ( kw )	62.5	62.5	/	72.5	85.5	93	/
Dimensions (L×W×H) (m)	15.0×4.0×4.0	15.0×4.0×4.0	15.0×4.0×4.0	19.0×4.0×4.0	19.0×4.0×4.0	19.0×4.0×4.0	20.0×3.5×4.0
Machine weight (t)	33	33	33	38	41	35	37 (standard configuration) 40 (advanced configuration)
