Glass Capsule Threaded Rod Anchor
Request a Quote
Chemical Anchors

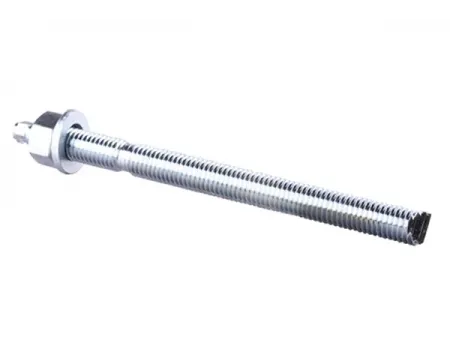

Threaded stud with resin capsule

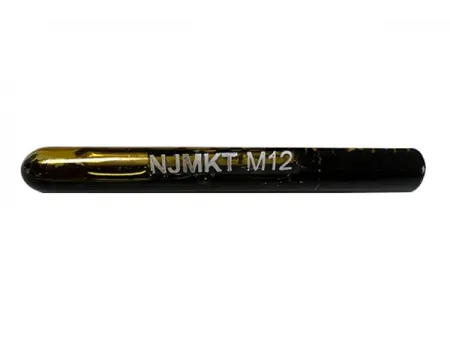

For efficient and reliable chemical anchoring in concrete, our glass capsule threaded rod anchors combine a threaded stud with a resin capsule, providing a strong and durable bond. Fully compliant with threading specifications, these anchors have passed tolerance checks to ensure precise fit and performance.
Materials for Threaded Rods
- Alloy steel (grades 5.8, 8.8, 10.9, 12.9)
- Stainless steel (grades 50, 70, 80)
- Titanium alloy (TA2)
Technical Data
| Anchor rod size | Material class | Effective embedment depth (mm) | Tension load (kN) (nominal/design) | Shear load (kN) (nominal/design) | |
| Cracked concrete | Non-cracked concrete | Cracked concrete | |||
| M8 | 5.8 | 80 | 4.0/2.2 | 12.1/6.7 | 7.3/5.6 |
| 8.8 | 4.0/2.2 | 12.1/6.7 | 11.7/9.0 | ||
| 304 | 4.0/2.2 | 12.1/6.7 | 3.8/3.0 | ||
| 316 | 4.0/2.2 | 12.1/6.7 | 8.2/6.3 | ||
| M10 | 5.8 | 90 | 5.7/3.1 | 17.0/9.4 | 11.6/8.9 |
| 8.8 | 5.7/3.1 | 17.0/9.4 | 18.6/14.3 | ||
| 304 | 5.7/3.1 | 17.0/9.4 | 61/4.7 | ||
| 316 | 5.7/3.1 | 17.0/9.4 | 131/10.0 | ||
| M12 | 5.8 | 110 | 8.3/4.6 | 24.9/13.8 | 16.9/12.9 |
| 8.8 | 8.3/4.6 | 24.9/13.8 | 26.9/20.7 | ||
| 304 | 8.3/4.6 | 24.9/13.8 | 8.9/6.8 | ||
| 316 | 8.3/4.6 | 24.9/13.8 | 19.0/14.6 | ||
| M16 | 5.8 | 125 | 12.6/7.0 | 37.7/20.9 | 31.4/24.2 |
| 8.8 | 12.6/7.0 | 37.7/20.9 | 50.2/38.6 | ||
| 304 | 12.6/7.0 | 37.7/20.9 | 16.5/12.7 | ||
| 316 | 12.6/7.0 | 37.7/20.9 | 35.3/27.2 | ||
| M20 | 5.8 | 170 | 21.4/11.9 | 64.1/35.6 | 49.0/37.6 |
| 8.8 | 21.4/11.9 | 64.1/35.6 | 78.4/60.3 | ||
| 304 | 21.4/11.9 | 64.1/35.6 | 25.7/19.8 | ||
| 316 | 21.4/11.9 | 64.1/35.6 | 55.1/42.4 | ||
| M24 | 5.8 | 210 | 31.7/17.6 | 95.0/52.8 | 70.6/54.3 |
| 8.8 | 31.7/17.6 | 95.0/52.8 | 112.9/86.8 | ||
| 304 | 31.7/17.6 | 95.0/52.8 | 37.1/28.5 | ||
| 316 | 31.7/17.6 | 95.0/52.8 | 79.4/61.1 | ||
Features
- Designed for quick and straightforward installation, reducing time on-site and improving project efficiency.
- Fast-setting resin ensures a strong bond in a short amount of time, speeding up the construction process.
- Ideal for projects with limited edge distances or tight spacing between anchors, offering flexibility in various construction layouts.
- These threaded rod anchors can be welded, allowing for further customization and adaptability in a range of applications.
