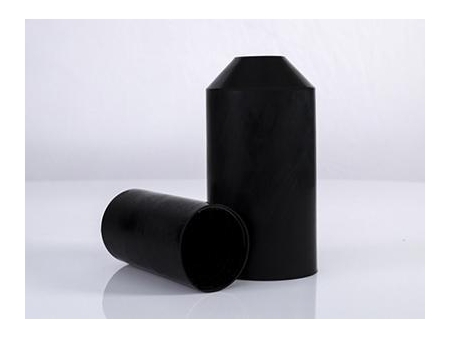

Heat Shrink Cable End Cap
Request a Quote
Model: CYG-RSCE
Application
Heat shrink cable end caps feature excellent water resistance and can be widely used in the terminal processing of power cables and communication cables.
| Size | As supplied (mm) | After recovery (mm) | Cable range (mm) | |
| I.D. | I.D. | Wall thickness | ||
| RSCE-12/4 | ≥12 | ≤4 | 2.5±0.25 | 4～8 |
| RSCE-15/5 | ≥15 | ≤5 | 2.5±0.25 | 6～12 |
| RSCE-25/8 | ≥25 | ≤9 | 2.8±0.25 | 9～17 |
| RSCE-35/12 | ≥35 | ≤12 | 3.0±0.4 | 18～30 |
| RSCE-55/25 | ≥55 | ≤25 | 3.3±0.4 | 31～45 |
| RSCE-75/35 | ≥75 | ≤35 | 3.3±0.4 | 45～60 |
| RSCE-100/50 | ≥100 | ≤50 | 3.9±0.4 | 61～82 |
| RSCE-120/60 | ≥120 | ≤60 | 4.0±0.4 | 83～100 |
| RSCE-148/57 | ≥148 | ≤60 | 4.0±0.4 | 83～100 |
VALVE COULD BE SUPPLIED AS REQUEST.
Main technical performance| Items | Unit | Specifications | Test methods |
| Tensile Strength | MPa | ≥12 | ASTM D2671 |
| Elongation | % | ≥300 | ASTM D2671 |
| 120℃、168h heat aging | K1＞0.8, K2＞0.7 | ASTM D2671 | |
| Volume resistance | Ω.cm | ≥1014 | ASTM D2671 |
| Dielectric strength | kV/min | ≥18 | ASTM D2671 |
| Water absorption | ≤0.5% | ASTM D570 |
