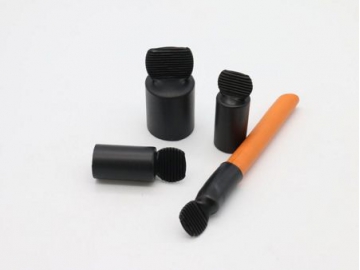

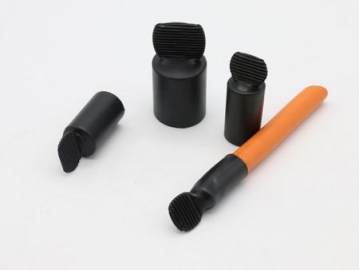

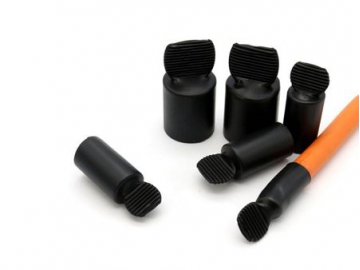

Heat Shrink End Cap, SBRS-CAPS-RL

Model: SBRS-CAPS-RL

Semi-rigid, adhesive-lined heat shrinkable insulating end cap

SBRS-CAPS-RL heat shrink end cap is adhesive-lined heat shrinkable insulating end cap manufactured from semi-rigid cross-linked polyolefin. The heat shrink end caps are a simple effective method for sealing cable ends, pipes and conduits, and providing moisture and mechanical.

Features

3:1 shrink ratio
Resistant to common fluids and solvents
Superior resistance to weathering, moisture contamination and adverse environmental conditions
Standard adhesive liner for complete environmental protection and insulation
Heat indicating lines
Resistant to common fluids and solvents
Coated hot melt adhesive for protection against pull-off
Fully shrink temperature: 125℃
Continuous operating temperature: -55℃～110℃
Standards rating: 600/1000V

Typical Applications

Watertight sealing of cable ends and pipe conduit

Technical Data

Property	Test Method	Standard Performance	Typical Performance
Tensile strength (MPa)	ASTM D 2671	≥10.4	11.5
Elongation (%)	ASTM D 2671	≥300	450
Tensile strength after aging (MPa)	UL224 158℃×168hr	≥7.3	8.5
Elongation after aging (%)	UL224 158℃×168hr	≥200	350
Dielectric strength (kV/mm)	IEC 60243	≥15	17.5
Volume resistivity (Ω.cm)	IEC 60093	≥1×10¹⁴	2.5×10¹⁴
