Copper Lug (with barrier), DTM Series
Request a Quote
DTM series copper lug can be used to connect the electric wire, the power cable and the electrical equipment of a power distribution. It can also be used with cold and heat shrink outdoor termination kits.
Download
Features
The cable lug is made of quality T3 copper rods, with a copper content ≥99.7% and good conductivity performance (conductivity rate ≥86% IACS). The raw copper material meets the national standard of GB/T 5231-2001.

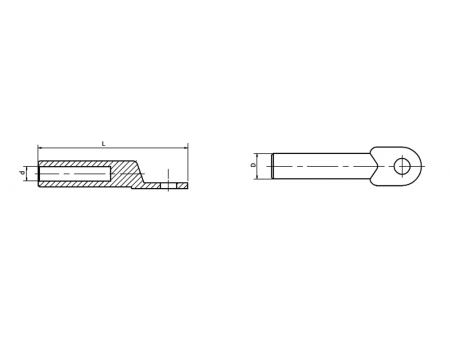

Structure Chart
Specifications
Model | Main dimensions | ||
Outer diameter D | Inner diameter d | Length L | |
DTM-10 | 9 | 5.5 | 66 |
DTM-16 | 10 | 6.0 | 67 |
DTM-25 | 11 | 7.0 | 70 |
DTM-35 | 12 | 8.5 | 79 |
DTM-50 | 14 | 9.6 | 87 |
DTM-70 | 16 | 12.0 | 95 |
DTM-95 | 18 | 13.0 | 105 |
DTM-120 | 20 | 15.0 | 112 |
DTM-150 | 22 | 16.0 | 118 |
DTM-185 | 25 | 18.0 | 125 |
DTM-240 | 27 | 20.0 | 136 |
DTM-300 | 30 | 23.0 | 160 |
DTM-400 | 34 | 26.0 | 165 |
DTM-500 | 38 | 29.0 | 190 |
DTM-630 | 45 | 34.0 | 220 |
