Request a Quote
This product has been discontinued and removed from our shelves.

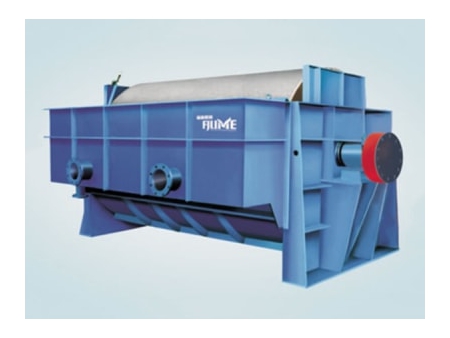

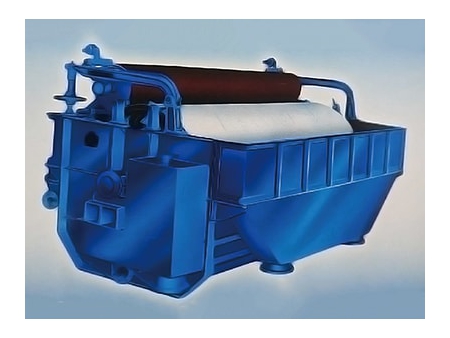

The ZSW series twin wire press is applied for thickening and dewatering chemical wood pulp, old corrugated cartons, waste paper pulp and more. It adopts double cylinders to press and dehydrate well, so as to stably produce H.C. pulp. This double round wire press has optimal structure and minimum space occupation for convenient transport and assembling on site. As a pulp thickener or pulp dewatering machine, it is characterized by stable operation, saving consumption, high efficiency etc.

Specifications of Twin Wire Press, ZSW Series
Model ZNW2 ZNW3 ZNW4 ZNW5 ZNW5A ZNW6ZNW7 ZNW8 ZNW9
Capacity(T/d) 5-10 8-20 15-35 20-50 25-60 30-75 35-90 40-100 45-120
Wire Area(㎡) 5 8 15 20 25 30 35 40 45
Wire Mould Size (Mm) Φ1000x1800 Φ1250x2000 Φ1500x3000 Φ1000x1800 Φ1000x1800 Φ2500x3800 Φ2500x4400 Φ3000x4000 Φ3000x4600
Inlet Consistency (%) 0.5-1
Outlet Consistency (%) 5-6
Motor Power (KW) 4 5.5 7.5 11 11 11 15 18.5 18.5
