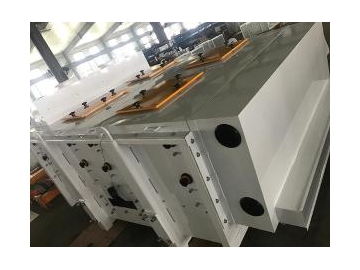

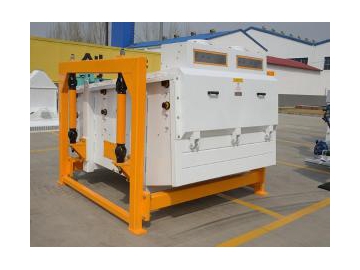

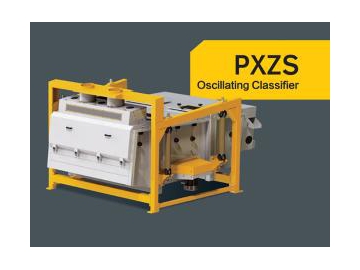

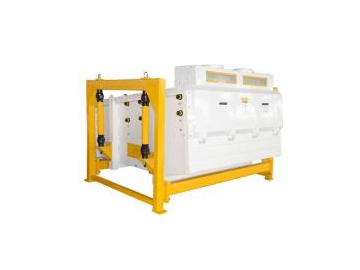

Oscillating Classifier
Scope of Use
It is applied for screen and classifying granular materials in flour milling, chemical and pharmaceutical industry.
| Model | Capacity (T) | Sieve mesh size (W*Lmm) | Net sifting area(m2) | Power | Dimension(L*W*Hmm) |
| 25-40 | 1250*2000 | 2.5 | 2.2 | 2515*2050*2000 | |
| 30-60 | 1500*2000 | 3.0 | 3 | 2505*2355*2065 | |
| 30-70 | 1500*2500 | 3.75 | 3 | 3010*2375*2165 | |
| 30-100 | 2000*2500 | 5.0 | 4 | 3010*2907*2205 |
Sieves configuration:
Screen frame material: metal welding, the surface receives spray painting;
The cleaning method of the sieve adopts a supporting net structure, and an elastic ball is arranged between the supporting net and the sieve surface.
Elastic ball: elasticity is greater than 80%.
Upper sieve hole: 8.0mm (can be manufactured according to process requirements).
Middle sieve hole: triangle hole with side length of 4mm (also can be manufactured according to process requirements).
Lower sieve hole: 2mm (can also be manufactured according to process requirements).
Suspension form:
Adopting universal joint coupling hanger.
Equipment configuration:
Motor: using 3kW, Wannan or Siemens (Beide) motors according to customer's requests.
Sieve plates: main side-boards are 4mm thick Q235 plates.
Transmission belt: the 5V triple V-Belt produced by Xiangliu Fangteng Tape Co., Ltd.
Surface treatment:
the steel used receives phosphating or shot blasting, then spray painting or stoving varnish treatment.
