Oscillating Granulator
Request a Quote

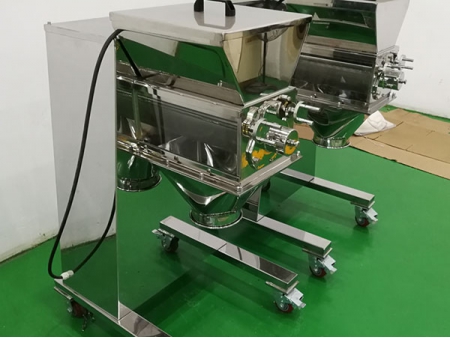

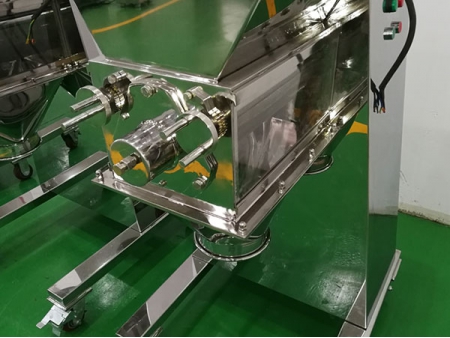

The oscillating granulator can make wet powder or block dry materials into granules. The 360-degree rotor movement enables the wet powder to be extruded from the screen into granules. Block materials collide and crush inside the roller and are forced to pass through the screen to become granules. This oscillating granulator is widely used in pharmacy, chemical, food and other industries.
Specifications| Model | |||
| Capacity | 20~30kg/h | 50~100kg/h | 200~300kg/h |
| Cycle Times | 46 time/min | 50 time/min | 55 time/min |
| Feed Port | 209×212mm | 300×280mm | 408×380mm |
| Motor | 0.55kW | 0.75kW | 2.2kW |
| Diameter of Barrel | 60mm | 90mm | 160mm |
| Oscillating angle | >360° | >360° | >360° |
| Dimensions | 460×550×570mm | 460×750×840mm | 950×560×1240mm |
| Weight | 55kg | 150kg | 360kg |
As a specialized oscillating granulator manufacturer in China, Jiangnan Enterprise also offers dry compact granulator, super mixing granulator, single punch tablet press machine, medical mixer, and more.
