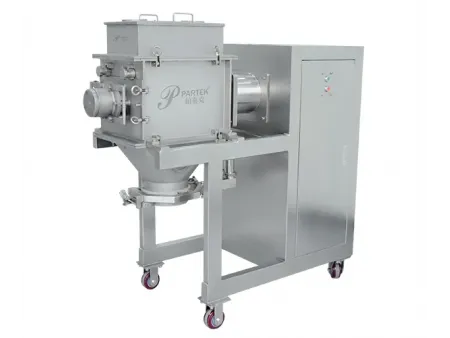

Oscillating Granulator

Request a Quote

View All: http://wydryingfiltration.com/4-10-oscillating-granulator.html

Series YK

Weiying supplies YK series oscillating granulator that is of excellent and quality pharmaceutical granulation equipment. The granulating machine mainly comprises hopper, rotor, main body, transmission system, rotating drum and so on.

Features

The user-friendly oscillating granulator has several advantages based on its compact, intelligent, easy cleaning and efficient sealed structured design, which can be flexibly installed and lead to perfect results;
One of the significant advantages of the oscillating granulator is the compact structure, which results in a small footprint;
The oscillating granulation machine enables an excellent quality of the products. Accordingly, the production of pharmaceutical products requires the highest precision. Therefore, our flexible solutions can definitely offer ideal systems for a flexible production of clinical batches;
The exterior part of this granulation machine is made of brushed stainless steel panels, thus maintaining good practices in preventing corrosion;
With good air seals as well as outstanding CIP system, this oscillating granulator is highly in line with GMP standards, ensuring that materials will not be mixed with lubricating oil;
Electromagnetic speed control: the oscillating granulator adopts electromagnetic speed control device to adjust the spindle speed, including both deceleration and speed-up function. So it is a perfect fit for clients to make flexible choices;

Technical Data

Model	Model B	Model C (heavy type)	YK160-F-120 (non-standard type)
Productive capacity (kg/h)	100--200	150--300	600--1000
Power of motor (kW)	2.2	3	7.5
Revolution of rotating drum (r/min)	65	65	10--44
Oscillating angle	360°	360°	4121°
Diameter of rotating drum (mm)	Ф160	Ф160	Ф160
Weight (kg)	300	450	2200
Dimension (L×W×H) (mm)	1150×680×1150	1260×750×1150	3100×930×1250

Note: Due to material difference, the output in the table is for reference only.

Weiying is a company dedicated to providing custom engineered filtration and drying equipment for the pharmaceutical, chemical, fine chemical and food industries.
