VB18B Mini Bus Air Conditioner
Request a Quote
Features
- The roof-mount layout makes the mini bus air conditioner convenient to open and overhaul.
- The fashionable streamline design perfectly integrates with the bus body and reduces air resistance in driving.
- With its high quality fiberglass epoxy resin case and cover, the mini bus air conditioner has high strength and high resistance to vibration and corrosion.
- World-brands refrigeration key parts assure the reliable working performance and super quality.
- The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.
- It has abundant cooling capacity, low noise and lower power consumption. This air conditioner is used for 6-7m bus.
| Model | VB18B | |
| Standard Cooling Capacity | 18kW (15480 Kcal/h, 61300 Btu/h) | |
| Max Cooling Capacity | 20kW (17200Kcal/h, 68112 Btu/h) | |
| Refrigerant | HFCR134a | |
| Compressor | Model | UX330/TM31 |
| displacement | 330cc/313cc | |
| Evaporator | Type | Cooper Tube & Aluminum fins |
| Blower Type | Double Axle Centrifugal Flow | |
| Blower Quantity | 4 | |
| Blower Output | 2800 m3/h | |
| Condenser | Type | Cooper Tube & Aluminum fins |
| Fan Type | Axial Flow | |
| Fan Quantity | 2 | |
| Fan Output | 4000 m3/h | |
| Control System | Bus Interior Temperature | 16℃-27℃ Adjustable |
| Defrosting Protection | 2℃ | |
| High Pressure Protection | 2.5Mpa | |
| Low Pressure Protection | 0.05Mpa | |
| External Dimension | 2430×1500×220 mm | |
| Total current | ≤32A(24V) | |
| Applying Buses | Coaster/Rosa 7-7.5m mini buses | |
Note: One year (12 months) warranty period since the date the products have been installed.
As a China-based mini bus air conditioner manufacturer, VehiClima Industry also provides APU truck air conditioner, container truck refrigeration unit, city bus air conditioner, articulated bus air conditioner, and more.

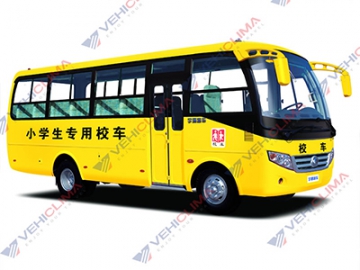

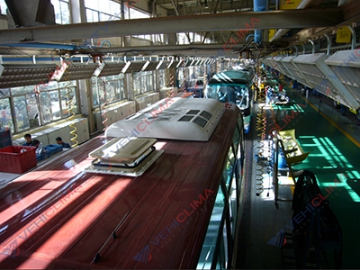

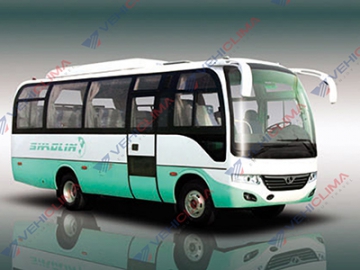

Application
