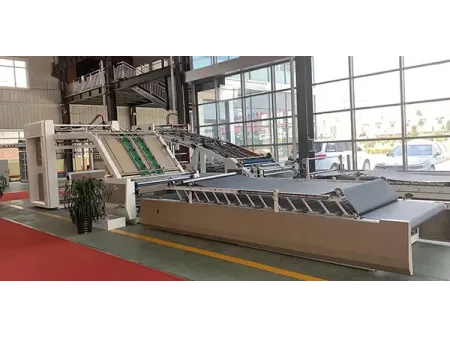

Cardboard Laminating Machine, CZYL-LM

Request a Quote

Website: http://corrugatedline-en.com/4-2-cardboard-laminating-machine.html

Carton Box Machinery

This cardboard laminating machine is designed for mid-speed lamination of surface paper to corrugated cardboard, handling thicknesses from 0.5 mm to 10 mm. It combines advanced servo control, durable construction, and precise feeding to deliver accurate alignment, smooth operation, and reliable performance across a wide range of carton production needs.

Features

Accurate Positioning
Unique compression spring front gauge design reduces mechanical failures and, combined with intelligent control, ensures precise lamination alignment.

Reliable Speed Control
Equipped with frequency conversion speed regulation and PLC centralized control with analog-to-digital conversion for accurate operation management.

Dual Servo Base Paper Control
Guarantees timely and accurate delivery of base paper to the front gauge, maintaining precision even during machine adjustments.

Stable Operation
Steel rollers undergo balancing and precision assembly, while the main transmission uses a timing belt system. Direct air suction feeding of base paper enhances accuracy and speed.

Durable Build
Manufactured with ISO9001-certified materials, with critical components such as bearings sourced from imported brands for long-lasting performance.

Efficient Paper Feeding
Feida feeder equipped with a pre-stacking device reduces downtime and increases productivity.

Versatile Application
Suitable for laminating 150–450 GSM surface paper onto A, B, C, D, E, F flutes as well as three- and five-layer corrugated boards, with a maximum thickness below 10 mm.

Specifications

Model	1450	1650
Max. sheet size (W×L) (mm)	1300×1450	1300×1650
Min. sheet size (W×L) (mm)	470×360	470×360
Surface paper thickness (g/m²)	170-800	170-800
Base cardboard thickness (mm)	0.5-10 (B/A/AB/E flute)	0.5-10 (B/A/AB/E flute)
Laminating accuracy (mm)	±1	±1
Max. laminating speed (sheets/min)	170	170
Power (kW)	29	29
Machine dimensions (L×W×H) (mm)	15000×2200×2500	15000×2400×2500
Height of base cardboard pile (mm)	400	400
Height of surface paper pile (mm)	1800	1800
Machine weight (ton)	7.6	8.2
