DPJML720

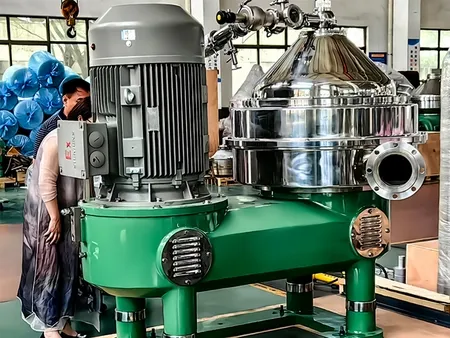

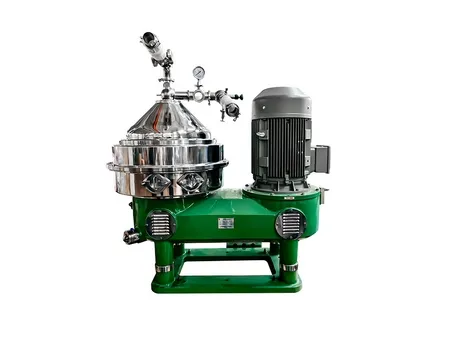

Centrifugal separator for clarifying (liquid-solid separation) and purification (liquid-liquid-solid separation)

60 to 80 m³/h Throughput Capacity
4,800 RPM Bowl Speed

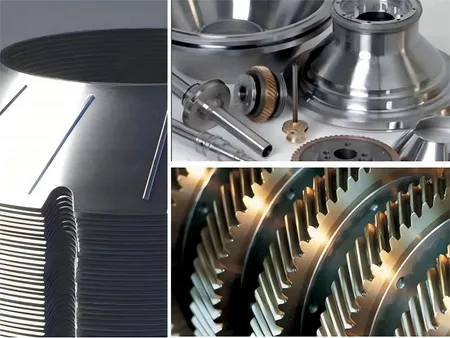

The disc stack centrifuge features a series of conical disc plates, offering high efficiency and two operational modes:

Clarification: Liquid-solid separation for suspensions with low solid content
Purification: Liquid-liquid or liquid-liquid-solid separation for emulsions

This centrifugal separator is ideal for applications such as liquid purification, solid concentration and dehydration, wet classification, liquid mixture separation, and component extraction. It is widely used across industries, including food processing (proteins, dairy, beer, starch, juices, beverages), environmental protection, animal and plant oils (lanolin, seed oils, fish oil, biodiesel), mineral oils, chemicals, and pharmaceuticals.

Specifications

Model	DPJML720
Bowl Diameter	715mm
Bowl Inner Diameter	630mm
Bowl Speed	4800rpm
Water Capacity	100m³/h
Throughput Capacity	60-80m³/h
Power	90kW
Dimensions (L×W×H)	2000×1550×2000mm
Weight	3000kg
