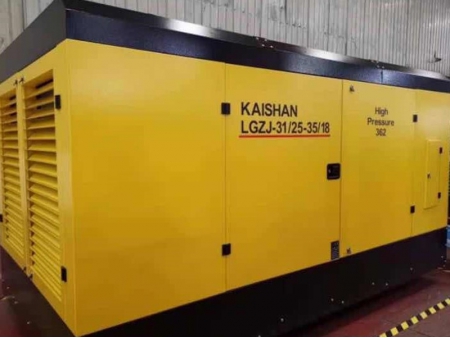

Diesel Screw Air Compressor, LGZJ-31/25-35/18
Request a Quote
The diesel screw air compressor is suitable for drilling operations in oil and gas field, equipped with a 400HP Yuchai engine. This air compressor has a displacement of 31-45m3/min, discharge pressure of 2.5-1.8MPa, and can be customized with additional value-added systems such as low-temperature starting system, aftercooler and steam-water separator, remote start-stop, monitoring, and positioning systems according to customer requirements.
Technical Specifications| Model | LGZJ-31/25-35/18 |
| Entire air compressor equipment | |
| Free air delivery (m3/min) | 31-35 |
| Working pressure (MPa) | 2.5-1.8 |
| Weight (kg) | 4500 |
| L*W*H (mm) | 3650×2000×2200 |
| Tyre size*quantity | 7.5-16*4 optional |
| Diesel engine | |
| Brand | Yuchai |
| Model | YC6MK400-H300 |
| Type | vertical, in line, water cooled |
| Cooling type | turbocharged intercooled |
| Cylinder diameter*stoke*cylinder quantity | 120×145×6 |
| Displacement (L) | 9.839 |
| Rated rotary speed (r/min) | 1800 |
| Unload rotary speed (r/min) | 1400 |
| Power (kW/HP) | 288 (400) |
| Diesel engine oil capacity (L) | 28 |
| Fuel oil capacity (L) | 350 |
| Electrical system voltage (V) | 24 |
| Compressor | |
| Compressor air end model | SKY11G220-B |
| Compression stage | 2 |
| Compressor oil capacity (L) | 80 |
| Intake valve size*quantity | G2×1, G3/4×1 |
