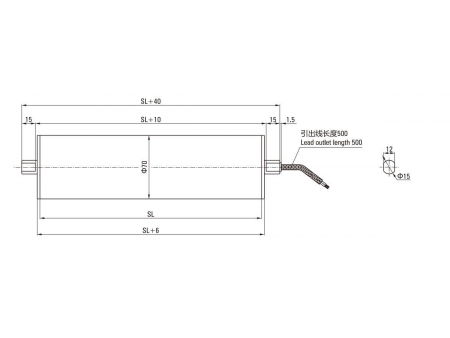

DM70 AC Drum Motor

Request a Quote

View All: http://zd-drivers.com/4-2-2-ac-drum-motor.html

Specifications

Rated Power W	Number of Stage	Gear Box Series	Gear Ratio	Max. Speed m/min	Rated Speed RPM	Rated Torque Nm	Traction N	Length mm
0.06	2	1	3.6500	150.624	684.9	0.70	21	350
			5.3600	102.571	466.4	1.10	30	350
			6.5500	83.936	381.7	1.30	37	350
			8.6300	63.706	289.7	1.70	49	350
		2	13.530	40.634	184.8	2.40	69	350
			18.920	29.058	132.1	3.40	96	350
			24.650	22.303	101.4	4.40	126	350
			28.050	19.600	89.10	5.00	143	350
			33.920	16.208	73.70	6.10	173	350
			44.690	12.302	55.90	8.00	228	350
			58.220	9.443	42.90	10.4	297	350
		3	67.080	8.196	37.30	10.8	308	360
			81.110	6.778	30.80	13.0	373	360
			91.360	6.018	27.40	14.7	420	360
			102.88	5.344	24.30	16.6	473	360
			118.98	4.621	21.00	19.1	547	360
			127.74	4.304	19.60	20.6	587	360
			145.36	3.782	17.20	23.4	668	360
			165.64	3.319	15.10	26.6	761	360
			191.56	2.870	13.10	30.8	881	360
			231.61	2.374	10.80	37.3	1065	360
0.09	2	1	3.6500	150.624	684.9	1.10	31	360
			5.3600	102.571	466.4	1.60	46	360
			6.5500	83.936	381.7	1.90	56	360
			8.6300	63.706	289.7	2.60	73	360
		2	13.530	40.634	184.8	3.60	104	360
			18.920	29.058	132.1	5.10	145	360
			24.650	22.303	101.4	6.60	189	360
			28.050	19.600	89.10	7.50	215	360
			33.920	16.208	73.70	9.10	260	360
			44.690	12.302	55.90	12.0	342	360
			58.220	9.443	42.90	15.6	445	360
		3	67.080	8.196	37.30	16.2	463	360
			81.110	6.778	30.80	19.6	559	360
			91.360	6.018	27.40	22.0	630	360
			102.88	5.344	24.30	24.8	709	360
			118.98	4.621	21.00	28.7	820	360
			127.74	4.304	19.60	30.8	881	360
			145.36	3.782	17.20	35.1	1002	360
			165.64	3.319	15.10	40.0	1142	360
			191.56	2.870	13.10	46.2	1321	360
			231.61	2.374	10.80	55.9	1597	360
