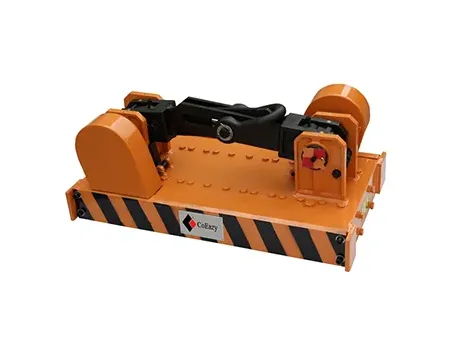

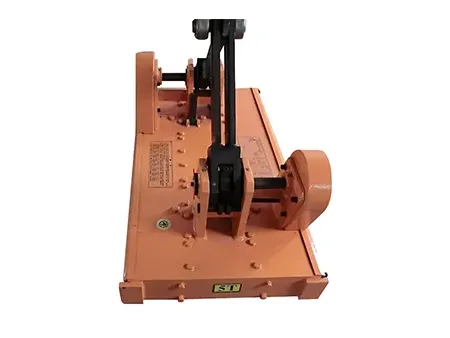

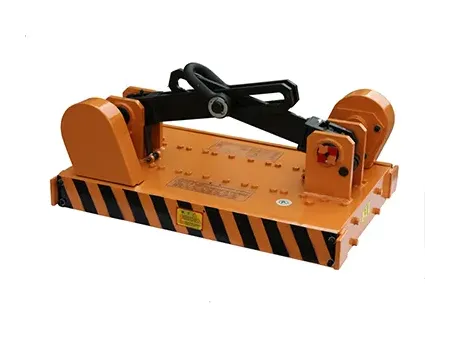

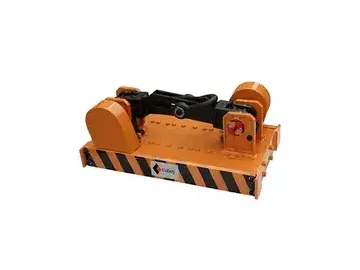

Automatic Permanent Magnetic Lifter

Request a Quote

View All: http://powertool-en.com/4-2-automatic-permanent-magnetic-lifterr.html

Steel Plate Handling

The automatic type magnetic lifter uses an automated control system to generate, maintain, and release magnetic force according to preset programs. This design allows for easy operation and high lifting efficiency, making it ideal for large-scale, high-efficiency lifting tasks.

Fully automatic magnetic lifters can also be customized based on specific operational needs, such as adjusting magnetic force levels and setting lifting durations, greatly enhancing flexibility and convenience.

In terms of safety, automatic magnetic lifters incorporate multiple protective features, including overload protection and power failure protection. These safeguards automatically cut power or activate protective mechanisms in case of abnormal conditions, ensuring the safety of both personnel and equipment. Additionally, the self-diagnosis function helps operators quickly identify and resolve issues, improving maintenance efficiency and extending the device’s lifespan.

Features

Made with high-performance permanent magnetic materials, ensuring no demagnetization over time.
Operates without the need for electricity or any external power source.
Features an advanced magnetic circuit balance design, providing strong holding force with near-zero residual magnetism, ensuring safety and reliability.
The maximum breakaway force is 3.5 times the rated lifting capacity, offering a high safety factor.
The system automatically generates, maintains, and releases magnetic force according to preset programs, ensuring efficient and hands-free operation.

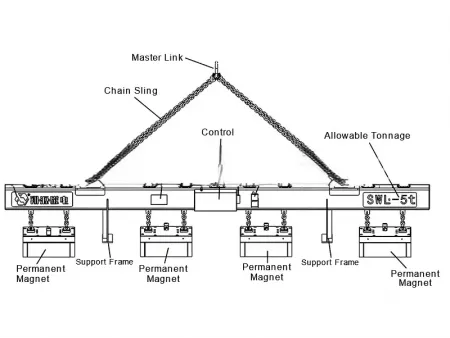

Lifting Magnet Attached to the Spreader Beam

Models of Automatic Permanent Magnetic Lifter

Model:
Lifting Capacity	Safety Factor	Weight	Shape Size (mm)
Lifting Capacity	Safety Factor	Weight	A	B	C	D	E	F	h	H
600kg	3.5x	145kg	482.6	237	563.5	432	28	55	106.5	387

Model:
Lifting Capacity	Safety Factor	Weight	Shape Size (mm)
Lifting Capacity	Safety Factor	Weight	A	B	C	D	E	F	h	H
1000kg	4.0x	200kg	685.8	237	767.8	432	28	55	106.5	480.2

Model:
Lifting Capacity	Safety Factor	Weight	Shape Size (mm)
Lifting Capacity	Safety Factor	Weight	A	B	C	D	E	F	h	H
1500kg	3.5x	245kg	761.6	280	843.6	470	28	53	108.5	452.2

Model:
Lifting Capacity	Safety Factor	Weight	Shape Size (mm)
Lifting Capacity	Safety Factor	Weight	A	B	C	D	E	F	h	H
2000kg	3.5x	279kg	761.6	328	843.6	518	28	53	108.5	452.2

Model:
Lifting Capacity	Safety Factor	Weight	Shape Size (mm)
Lifting Capacity	Safety Factor	Weight	A	B	C	D	E	F	h	H
3000kg	3.5x	430kg	861.8	400	943.8	615	36	70	126	669

Model:
Lifting Capacity	Safety Factor	Weight	Shape Size (mm)
Lifting Capacity	Safety Factor	Weight	A	B	C	D	E	F	h	H
5000kg	3.0x	490kg	1121.4	400	1039.4	615	36	70	132.5	700

1000kg Lifting Magnet
1500kg Lifting Magnet
2000kg Lifting Magnet
3000kg Lifting Magnet
5000kg Lifting Magnet

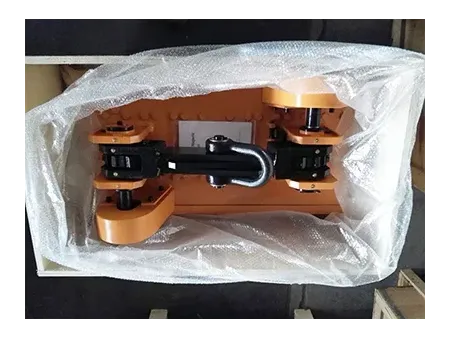

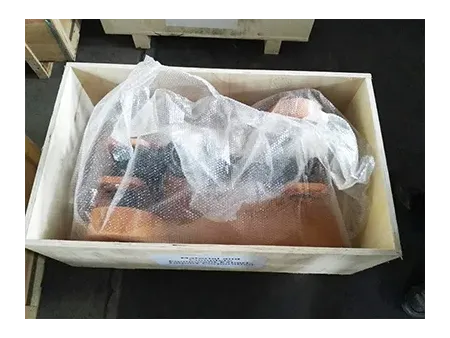

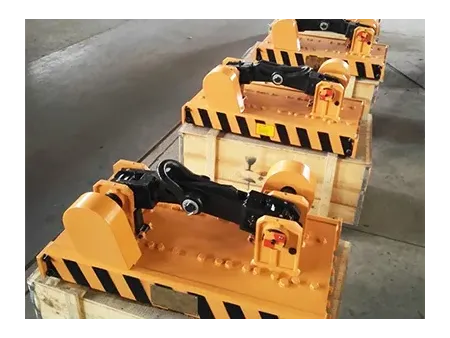

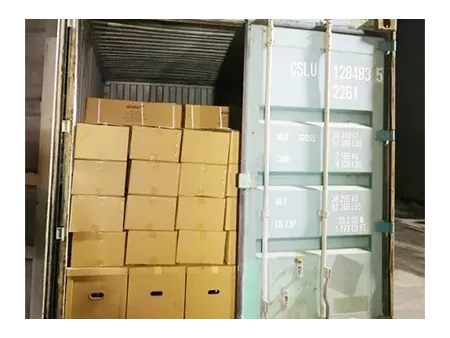

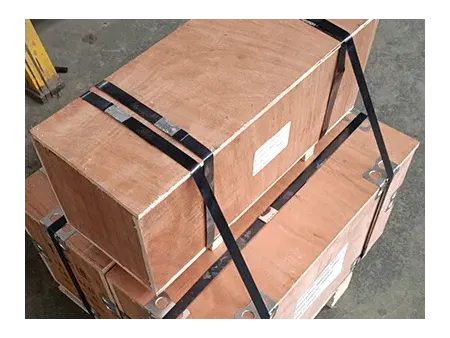

Packaging & Shipping

Machine and accessories are packed into an outer carton.
The carton is sealed and securely strapped.
Products are shipped via container transport.
