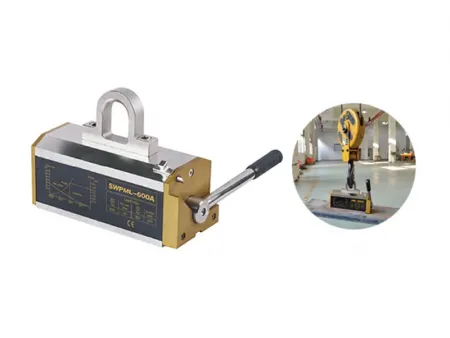

Lifting magnets for lifting and transporting steel plates, blocks and other ferrous materials

Handling steel plates, blocks, and cylindrical workpieces becomes more efficient with permanent magnetic lifters, which eliminate the need for slings, hooks, or clamps. These lifting magnets simplify loading, unloading, and material handling in factories, ports, warehouses, and transportation industries. Their secure magnetic grip enhances workplace safety while reducing manual effort.

Specifications of Permanent Magnetic Lifter

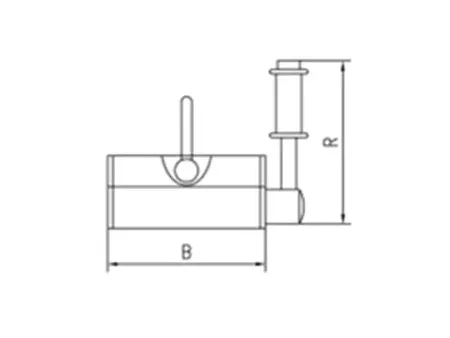

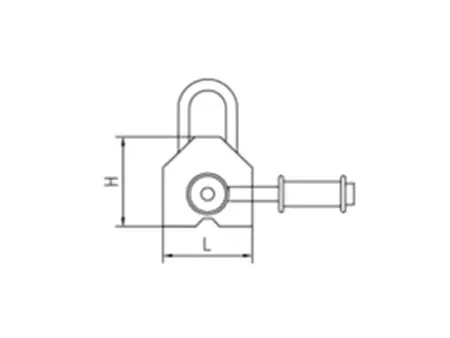

Model	Rated lifting force (plate) (kg)	Rated lifting force (cylindrical) (kg)	Pull-off force (kg)	Dimensions (mm)				Weight (kg)
Model	Rated lifting force (plate) (kg)	Rated lifting force (cylindrical) (kg)	Pull-off force (kg)	L	W	H	R	Weight (kg)
PML-100	100	30	350	90	63	68	150	3
PML-300	300	100	1050	162	90	91	200	9
PML-600	600	200	2100	222	120	118	230	22
PML-1000	1000	300	3500	260	150	164	300	43
PML-1500	1500	500	5250	340	150	164	320	56
PML-2000	2000	700	7000	420	185	184	380	95
PML-3000	3000	1000	10500	550	210	212	550	180
PML-6000	6000	2000	21000	770	255	262	880	380

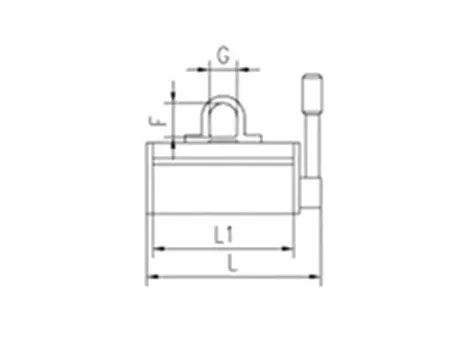

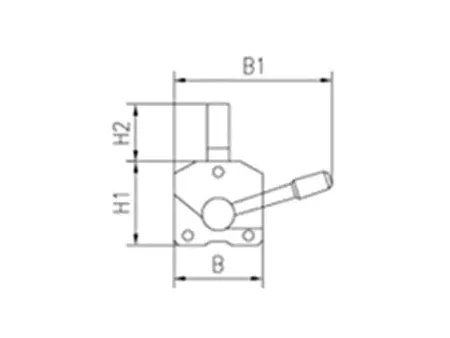

Model	Dimensions (mm)								Weight (kg)
Model	L	L1	B	H1	H2	B1	F	G	Weight (kg)
PML-100A	120	90	55	60	50	120	35	25	3
PML-300A	203	165	87	89	68	223	45	38	10
PML-600A	266	226	112	109	89	287	58	45	21
PML-1000A	330	290	148	125	95	364	60	52	40
PML-1500A	385	330	178	145	118	447	70	65	65
PML-2000A	470	420	178	145	118	487	70	65	83
PML-3000A	490	435	210	175	128	487	80	70	125

Shape of object	Plate			Cylindrical
Model	Rated lifting force (kg)	Min. thickness (mm)	Max. length (mm)	Rated lifting force (kg)	Max. diameter (mm)	Max. length (mm)	Min. diameter (mm)
PML-100A	100	10	1000	50	100	1000	10
PML-300A	300	20	1500	150	300	1500	12
PML-600A	600	30	2000	300	400	2000	20
PML-1000A	1000	40	3000	500	450	3000	28
PML-1500A	1500	50	3000	750	500	3000	34
PML-2000A	2000	60	3000	1000	600	3000	40
PML-3000A	3000	60	4000	1500	700	4000	50

Features

Constructed with high-performance neodymium (NdFeB) magnets, providing a strong and stable lifting force for various workpieces.
Manual handle control enables easy attachment and release, streamlining lifting operations and improving workflow efficiency.
3.5 times safety factor, ensuring a secure hold even when an air gap exists between the workpiece and the lifter.
Designed for industrial environments, with a maximum operating temperature of 80°C, maintaining reliable performance in demanding conditions.
