Mechanically driven tube filler &sealer for plastic or laminated tubes
  • Filling volume

    1-400ml

  • Packing speed

    50-70 tubes/min

  • Max. air consumption

    4-5kgf/m²

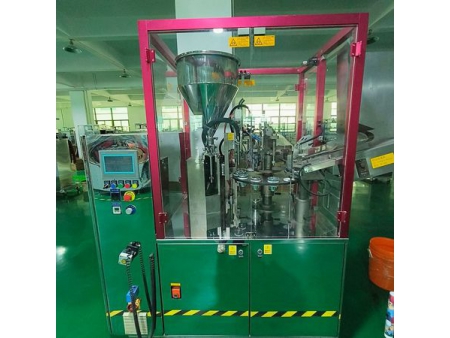

The DC-638-558 tube filler & sealer is a fully automated tube filling and sealing machine capable of working with a multitude of tube sizes, such as plastic, laminated, and 80% of all flat tubes available. It has been designed with easy and fast product specification and pipe length replacement, making it the perfect fit for industries in need of speedy production, such as pharmaceutical, food and daily chemical. Reaching speeds of up to 70 tubes per minute, it's an unbeatable addition to your solution.


Specifications
Model DC-638-558
Machine type Mechanical transmission
Machine dimensions (L×W×H) 2000×1160×2100mm
Tube diameter 13-50mm
Tube length Max. 230mm (including cap)
Filling speed 50-70 tubes/min
Power supply 220/380V,8kW, 3 phase
Hopper capacity 45L (customizable)
Applicable tube Plastic squeeze tube, laminated tube
Features

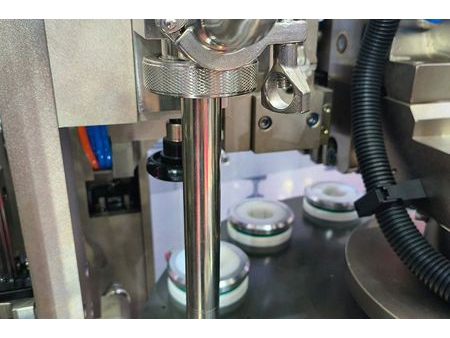

  • The feeding mechanism has been enhanced with its filling nozzle upgraded to a lift-operated feeder, enhancing the stability of the feed. This enables materials with excellent fluid properties to be supplied without scattering.

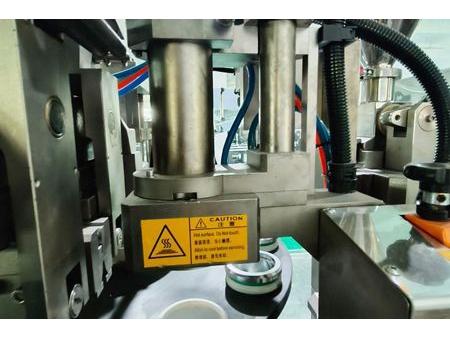

  • The heater of the sealing machine has been updated, allowing for easy adjustment of the height, all without the need for any tool. A negative pressure suction device has also been added, making it easier and simpler to exchange heaters with aluminum-plastic tubes, especially when it comes to plastic tubes and composite tubes.
  • Many modern automatic tube sealing machines don't come with a reverse alarm or stirring feature. However, the storage pipe and lower pipe of the equipment are equipped, allowing you to detect anytime the tube is reversed and allowing you to act immediately.
  • The sealer has been enhanced when it comes to mark identification, making it easy to adjust the seal positioning on the touch screen without having to stop or open the door for manual adjustment. This improved feature enables the mark identification position to be changed in the middle of production, resulting in a more user-friendly experience.
Details
  • Standard safety door (for safety production)

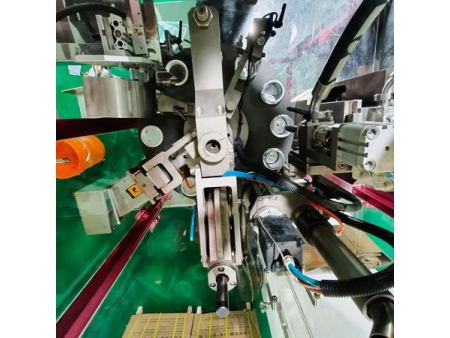

  • Mechanical rotary disc
  • Mark identification device
  • Cold sealing
  • Chiller
  • End cutter
  • Tube press
  • Waste collection box

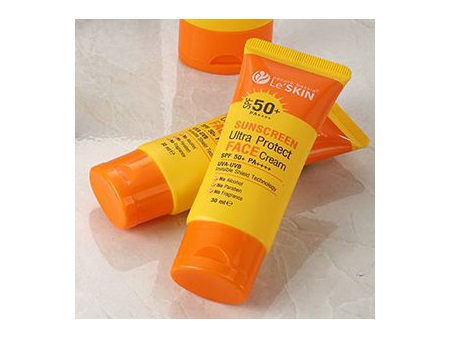

  • Finished products
Equipment workflow

Tube feeding → mark identification → filling → heating → end sealing (code printing) → end cutting → finished product
