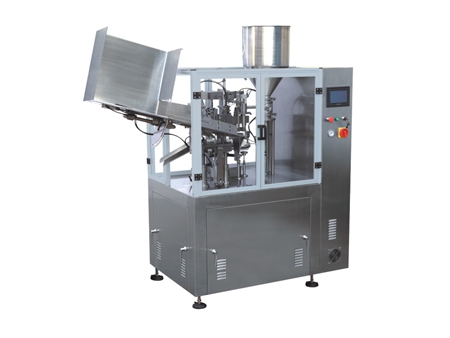

Automatic Metal Tube Filling Capping Sealing Machine
Application
Automatic metal tube filling capping sealing machines are used to fill and seal plastic tubes and laminated tubes. This equipment can be printed on according to customer requirements, and materials include a liquid and high viscosity paste material. Each tube filling machine meets GMP standards, and can be used as corollary equipment in a number of factory types, ranging from cosmetics to food and everything in between.
| Texture | Metal tube |
| Diameter | Ф19～Ф32mm |
| Length | 60-250mm |
| Capacity | 20～150ml per tube |
| Precision | ≤±1% |
| Productivity | 10～30 tube per min |
| Working pressure | 0.55-0.65 Mpa |
| Motor power | 1.5Kw(380V/220V 50HZ) |
| Hot sealing power | 3Kw |
| Size | 1000×550×1200mm(L×W×H) |
| Weight | 250kg |
Work process
8-16 station automatic rotation à quantitative filling à automatic cut off à heat sealing à cutting tail à finished output.
All workflows are controlled by the cylinder, which features a high precision filling and adjustable filling speed.
Features
1. The sealing material used in the automatic tube filling machine is stainless steel, with the process controlled by a highly automatic system.
2. Manually add material
3 The device's tail speed is easy to adjust, and the speed is clearly on display with a digital display.
4. If there is no plastic pipe or composite pipe to be filled, the equipment will not carry out filling.
5. When the equipment operates normally and the hose is offset, a device will automatically sound an alarm and stop operation, making this equipment user friendly.
6. The same machine can be equipped with different molds to achieve different specifications for the filling and sealing of plastic pipes and composite pipes.
| Item | Specifications and Models | Quantity | Note |
| three-phase asynchronous motor | Y90L-4 1.5kW/380V 1400rpm horizontal | 1 | Jiangsu Nantong |
| electromagnetic clutch | DLYO-16A | 1 | Tian jing |
| reduction box | WPKA70 30:1 | 1 | Hangzhou wanjie speed reducer co. LTD |
| pneumatic element | 1 | Shanghai full wei + yadke | |
| electrical apparatus element | 1 | Zhejiang tianzheng | |
| transducer | 1 | Tai da |
Yuxiang as a reliable metal tube filling capping sealing machine manufacturer and supplier, mainly provides tube filling and sealing equipment for cosmetics manufacturing plant and household chemical manufacturing plant. Our company offer complete liquid and cream process line including mixing, agitating, dispensing, emulsifying, homogenizing, filling and sealing as well as custom solutions.
