Ceramic PE Composite Ballistic Plate
Request a Quote
View All: http://uhmwpefiber.com
Ceramic Composite Ballistic Plate / Ceramic Ballistic Plate / PE Composite Ballistic Plate
Doyentrontex Ceramic Composite Plate

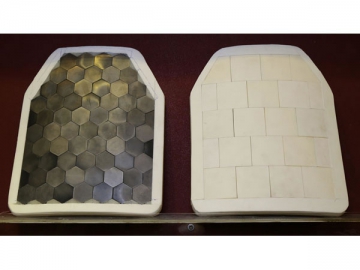

The Doyentrontex ZF series of ceramic composite plates is based on a backup plate made of UHMWPE fiber. The backup plate is combined with a silicon carbide or aluminum ceramic and a special gel through a thermal pressing molding. These composite ballistic plates are resistant to water, moisture, aging, and collisions, making them outstanding for stopping bullets at high velocities, even under harsh application environments.
Ceramic Composite Plate:
| Product | Product name | Protection level | Size W×L×H mm | Appearance | Weight （ kg） |
| ZF-143S | SiC composite plate | NIJ-IV, Stand alone | 250×300×22 | Type E, R:400 | 2.4±0.02 |
| ZF-143A | Al2O3 composite plate | NIJ-IV, Stand alone | 250×300×22 | Type E, R:400 | 2.9±0.05 |
| ZF-143SZ | SiC composite plate | NIJ-IV, ICW IIA vest | 250×300×20 | Type E, R:400 | 2.3±0.02 |
| ZF-133S | SiC composite plate | NIJ-III , Stand alone | 250×300×18 | Type E, R:400 | 1.85±0.05 |
| ZF-133SZ | SiC composite plate | NIJ-III , ICW IIA vest | 250×300×18 | Type E, R:400 | 1.65±0.05 |
| ZF-133SZIII | SiC composite plate | NIJ-III, ICW IIIA vest | 250×300×18 | Type E, R:400 | 1.3±0.05 |
| ZF-133A | Al2O3 composite plate | NIJ-III , Stand alone | 250×300×18 | Type E, R:400 | 2.3±0.02 |
