External Lifting Tool

FZQ Series

Pile upending and lifting device for handling large diameter piles

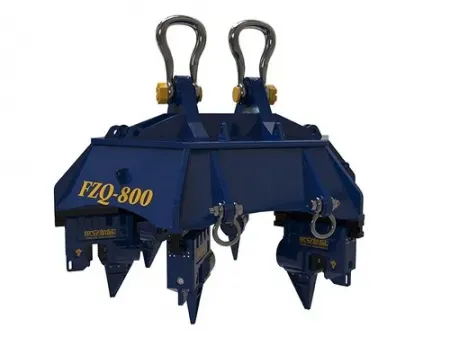

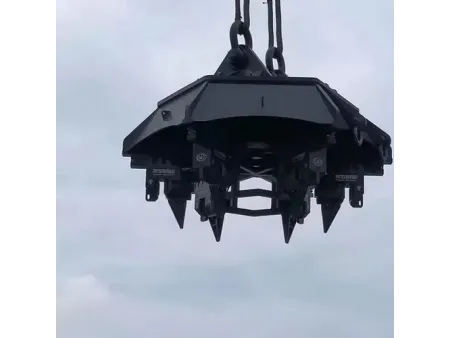

Introducing our external lifting tools (FZQ series), high-efficiency engineering equipment designed for pile handling. Equipped with clamps that securely grip the walls of tubular piles, these tools can lift piles once the control panel indicates a tight grip. With their maximum lifting loads ranging from 100 t to 1200 t, these hydraulic-powered tools ensure precise and stable operation, enhancing safety during the upending process. Customization is available to meet your specific needs.

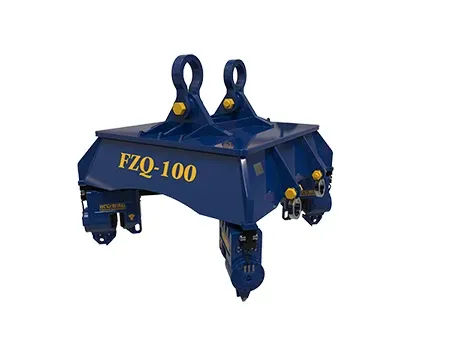

Model	FZQ-100
Maximum Lifting Load	100 ton
Maximum Clamping Force	2400 kN
Maximum Working Pressure	280 bar
Clamp Scope	1-2 m
Dimensions (L×W×H)	2000×2000×2400 mm
Weight	8 ton

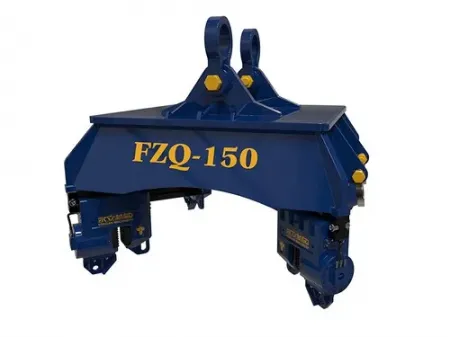

Model	FZQ-150
Maximum Lifting Load	150 ton
Maximum Clamping Force	3600 kN
Maximum Working Pressure	280 bar
Clamp Scope	1.5-2.5 m
Dimensions (L×W×H)	2380×2380×2570 mm
Weight	10 ton

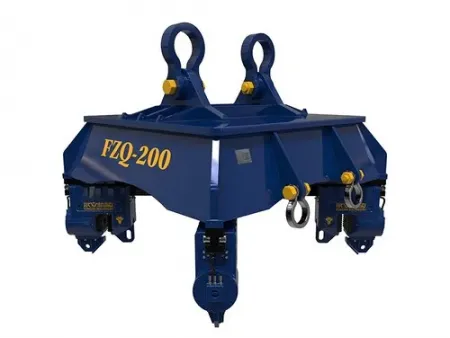

Model	FZQ-200
Maximum Lifting Load	200 ton
Maximum Clamping Force	4800 kN
Maximum Working Pressure	280 bar
Clamp Scope	1.8-3.5 m
Dimensions (L×W×H)	2850×2850×2570 mm
Weight	13 ton

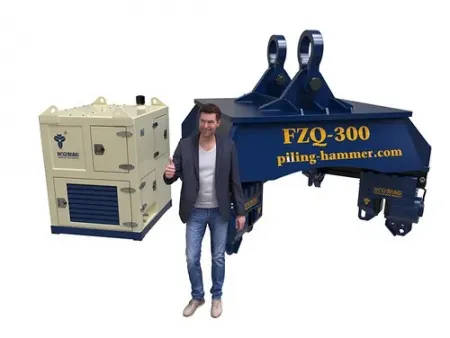

Model	FZQ-300
Maximum Lifting Load	300 ton
Maximum Clamping Force	9600 kN
Maximum Working Pressure	280 bar
Clamp Scope	2-3.5 m
Dimensions (L×W×H)	3150×3020×2570 mm
Weight	16 ton

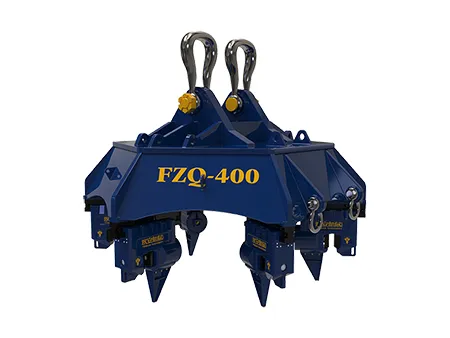

Model	FZQ-400
Maximum Lifting Load	400 ton
Maximum Clamping Force	9600 kN
Maximum Working Pressure	280 bar
Clamp Scope	2.5-3.5 m
Dimensions (L×W×H)	3180×3180×2600 mm
Weight	25 ton

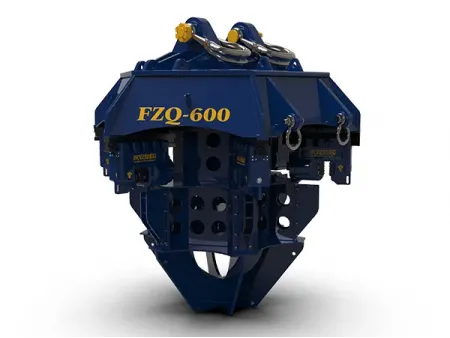

Model	FZQ-600
Maximum Lifting Load	600 ton
Maximum Clamping Force	14400 kN
Maximum Working Pressure	280 bar
Clamp Scope	2.5-4 m
Dimensions (L×W×H)	4500×4000×2600 mm
Weight	27 ton

Model	FZQ-800
Maximum Lifting Load	800 ton
Maximum Clamping Force	19200 kN
Maximum Working Pressure	280 bar
Clamp Scope	3-6 m
Dimensions (L×W×H)	9200×8300×3400 mm
Weight	42 ton

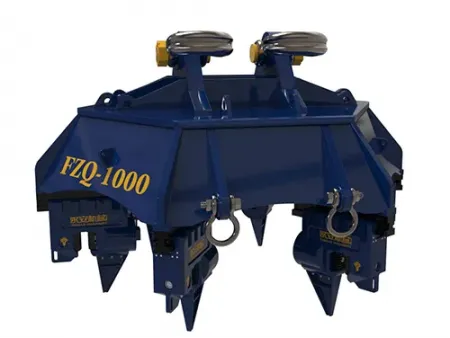

Model	FZQ-1000
Maximum Lifting Load	1000 ton
Maximum Clamping Force	25600 kN
Maximum Working Pressure	280 bar
Clamp Scope	3-10 m
Dimensions (L×W×H)	12400×11500×3500 mm
Weight	75 ton

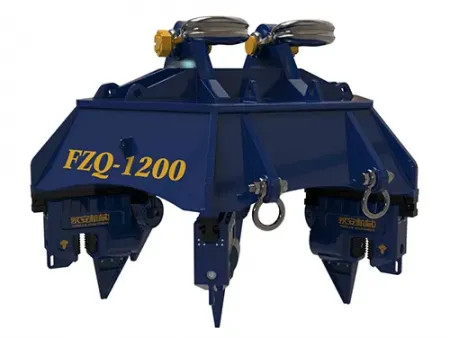

Model	FZQ-1200
Maximum Lifting Load	1200 ton
Maximum Clamping Force	32000 kN
Maximum Working Pressure	280 bar
Clamp Scope	3-12 m
Dimensions (L×W×H)	14500×13100×4000 mm
Weight	100 ton

Applications

Civil Infrastructure Construction
Offshore Wind Farm Construction

Suitable Pile Types

Steel Tubular Piles
Concrete Piles

Related Case Studies

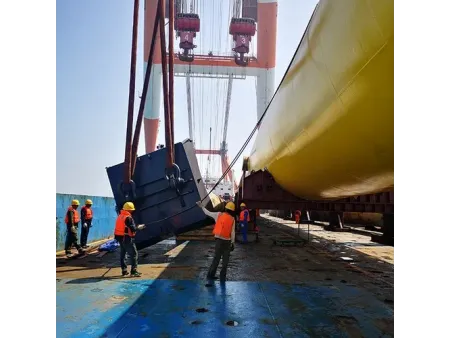

Construction Projects using FZQ-200 Pile Upending Tool

Yuedian's Offshore Wind Power Project in Yangjiang, Guangdong

Diameter: 3.5 m
Thickness: 50 mm
Weight: 160 t

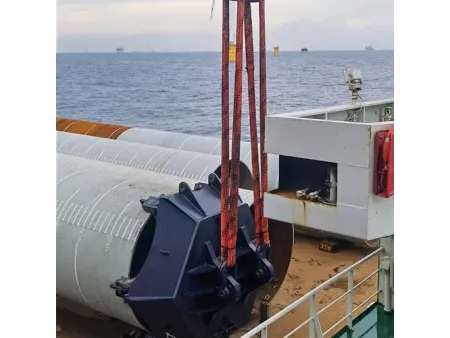

Construction Projects using FZQ-300 Pile Upending Tool

Offshore Wind Power project in Pingtan

Diameter: 2 m
Thickness: 28 mm
Pile length: 65 m
Weight: 100 t

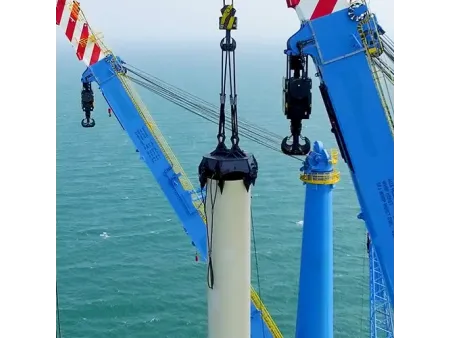

Construction Projects using FZQ-600 Pile Upending Tool

Yuedian’s Offshore Wind Power Project in Yangjiang, Guangdong

Diameter: 3.2 m
Thickness: 55 mm
Weight: 300-420 t

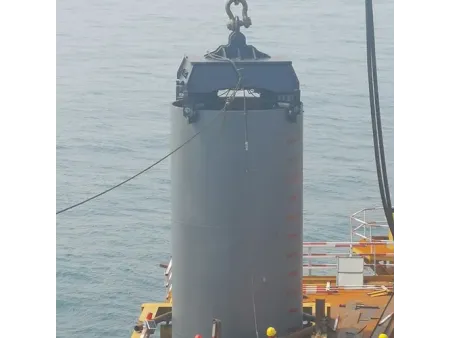

HXOES Offshore Wind Power Project in Jiangsu

Diameter: 2.8 m
Thickness: 50 mm
Weight: 400 t

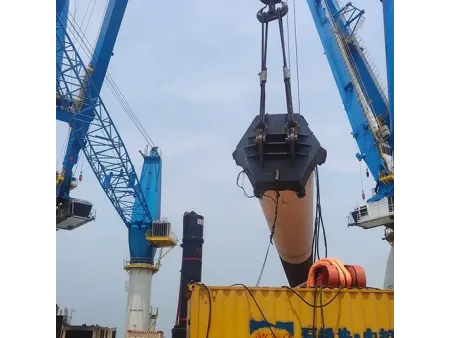

Thermal Power Project in Qingzhou Town, Guangdong

Diameter: 2.8 m
Pile length: 88 m
Thickness: 50 mm
Weight: 237 t

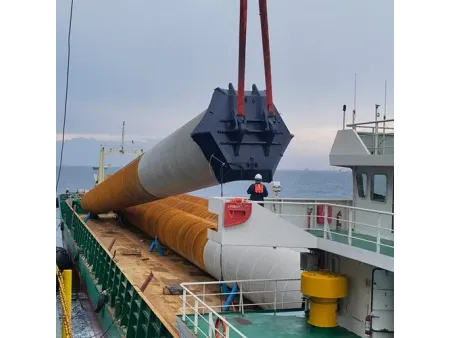

Offshore Wind Power Project in Yangjiang

Diameter: 3.5 m
Thickness: 55 mm
Pile length: 60 m
Weight 252 t

Changle Offshore Wind Farm A Zone Construction in Fujian

Diameter: 3.2 m
Thickness: 55 mm
Weight: 300-420 t
Application: offshore wind farm
