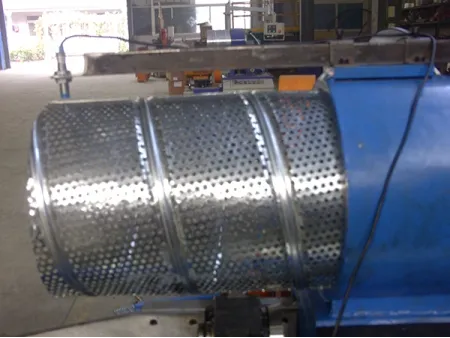

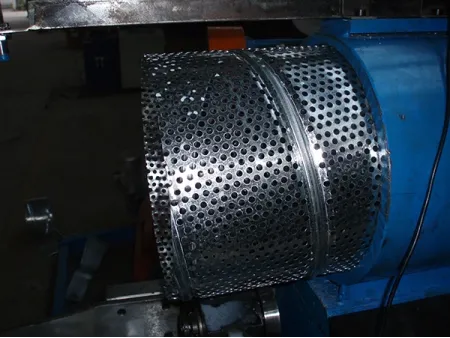

Perforated Filter Tube Forming Machine
Request a Quote
FCT-500
Spiral perforated tubeformer for manufacturing perforated tube filter cores
FCT-500
Spiral perforated tubeformer for manufacturing perforated tube filter cores
Spiral perforated tubes are widely used in oil extraction, chemical processing, sewage treatment, water purification equipment, and interior decoration. Our FCT-500 spiral perforated tube forming machine is specially designed for manufacturing perforated filter tubes with a thickness of 0.5mm-1.0mm. The perforated filter tube forming machine is configured with 25-ton punching unit, uncoiler, receiving rack, punching die, and a pneumatic feeder. It utilizes an integrated design for a compact structure. The main motor power is 11kW, and the feeding speed can reach 35 meters per minute. The forming die is adopted to ensure precise diameter of finished spiral mesh tubes.
Specifications
- Perforated spiral tube diameter range100-500mm
- Galvanized sheet thickness0.5-1.0mm
- Strip width137mm
- UncoilerVertical type uncoiler
Max. load 1200kg - Lock-seam typeExternal surface or internal surface of pipe
- Feeding speed0-35m/min (adjustable)
- Cutting methodRolling shear cutting
- Power systemCutting and flipping use pneumatic power; discharge roller clamping uses hydraulic power
- Forming die materialSteel (cast aluminum alloy is optional)
- Machine weight1800kg
- Machine dimensions3.4×1.8×1.8m
- Total power12.5kW
- Power supply380V/50Hz/3Ph (other power supplies are available)
- Control methodTouch screen
