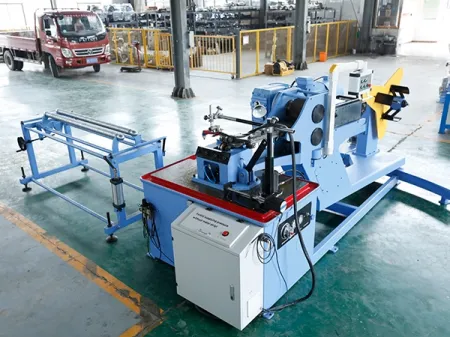

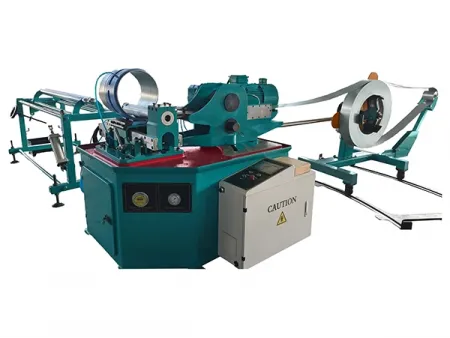

Spiral Duct Forming Machine
DDGJ-1.2-1800-ZF
Spiral tubeformer for manufacturing straight round spiral air ducts or helical tubes
DDGJ-1.2-1800-ZF
Spiral tubeformer for manufacturing straight round spiral air ducts or helical tubes

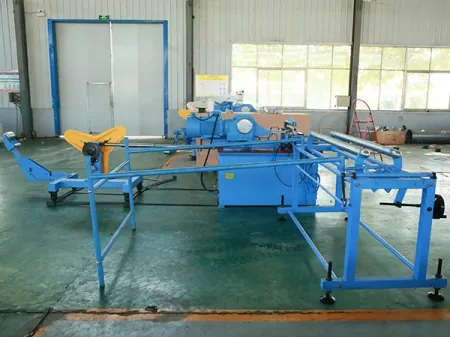

- Structure: split type, suitable for large-scale continuous production
- Spiral duct diameter range: 100mm to 1800mm
- Spiral duct thickness range: 0.5-1.2mm
- Feeding speed: 35 meters/minute, adjustable
Split-type spiral duct forming machine efficiently produces spiral duct pipes with a diameter range of 100mm to 1800mm. It can fabricate galvanized steel spiral ducts (thickness 0.5-1.2mm) and stainless steel spiral ducts (thickness 0.5-1.0mm). The split-structure design allows this air duct making machine to accommodate larger diameter steel coils, effectively reducing the frequency of coil changes during spiral duct production and making it suitable for large-scale continuous operation.
- Spiral duct diameter range100-1800mm
- Thickness range (Galvanized steel)0.5-1.2mm (strip width 137mm)
- Thickness range (Stainless steel)0.5-1.0mm (strip width 137mm)
- UncoilerIndependent uncoiler
- Uncoiler (Coil inner diameter)460-520mm
- Uncoiler (Max. coil outer diameter)1200mm
- Uncoiler (Max. coil weight)1200kg
- Lock-seam typeExternal lock-seam
- Feeding speed0-35 meters/minute (adjustable)
- Cutting methodRolling shear cutting or plasma cutting
- Power systemCutting and flipping use pneumatic power; feeding roller clamping uses hydraulic power
- Forming die materialSteel
- Machine weight2000kg
- Machine dimensions2.0×1.6×1.4m
- Uncoiler size1.5×0.85×1.2m
- Discharge rack size2.1×1.0×1.0m
- Total power16kW
- Power supply380V/50Hz/3Ph
- Control methodTouch screen
This spiral duct machine can produce spiral duct pipes through a die-forming process. Compared to traditional spread-wing type duct machines, this method results in a more secure lock-seam and more precise duct diameter control.
The spiral duct machine utilizes a lead screw transmission mechanism for machine body angle adjustment. This design significantly enhances the precision and stability of equipment debugging, further ensuring the quality of air duct formation.
The main motor provides 15kW of output, offering strong power.
The feeding speed is adjustable up to 35 meters/minute, demonstrating excellent production efficiency.
