AF-500

Spiral tubeformer for manufacturing diamond mesh spiral tubes

AF-500

Spiral tubeformer for manufacturing diamond mesh spiral tubes

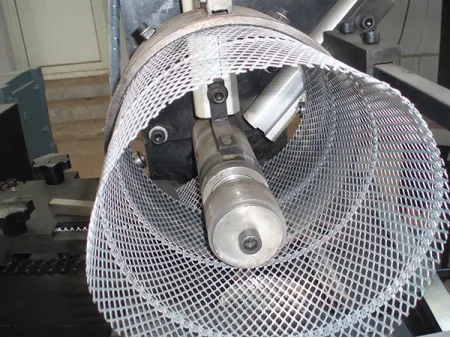

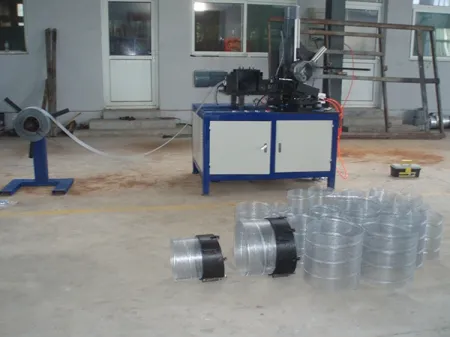

The spiral mesh tube forming machine is specially designed for producing mesh spiral tubes from 0.5-1.0mm thick expanded metal mesh or perforated sheet with diamond openings. It uses a split design that supports larger steel coils, reducing the frequency of material changes and increasing production efficiency. The spiral mesh tube machine features a low total power of 2.6kW, making it energy efficient and environmentally friendly. It utilizes a forming die output, which results in a more secure lock-seam and precise output diameter compared to traditional spread-wing type spiral tube machines.

Applications

The mesh tubes manufactured by this spiral mesh tube forming machine are mainly used as filter support components.

Specifications

Spiral mesh tube diameter range80-500mm
MaterialExpanded metal mesh, perforated galvanized sheet
Material (Thickness)0.5-1.0mm
Material (Strip width)109mm (or 124mm)
Cutting methodContinuous cut-to-length
Total power2.6kW
Machine dimensions1300×950×1800mm

Features

Wide application range: tube diameter range of 80-500mm and material thickness of 0.5-1.0mm meet diverse specification requirements.
High production efficiency: The split-type steel coil changing design reduces frequent material changes, increasing output capacity.
Low energy consumption: Total power is only 2.6kW, promoting energy saving and environmental protection.
Reliable structure: Uniform die output and a stable transmission system ensure precise spiral tube formation.
Simple operation: Suitable for continuous spiral mesh tube production, reducing manual adjustments and enhancing ease of use.
