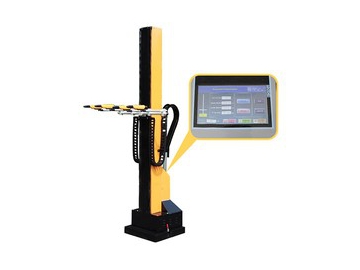

Touch Control (PLC) Automatic Reciprocator COLO-2200D
Request a Quote
COLO-2200D PLC controlled powder coating reciprocator guarantees smooth and precise motion, which delivers more uniform finishing quality with obvious powder saving. Work with automatic spray guns to meet continuous production demands, achieving high output with perfect results.
Features

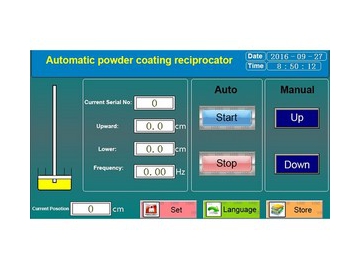

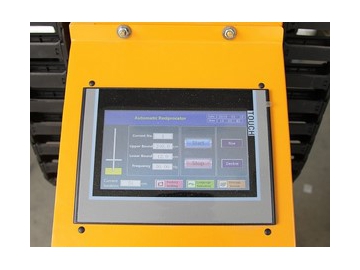

1. Precise speed, stroke and position could be set on the PLC controller via the touch screen.

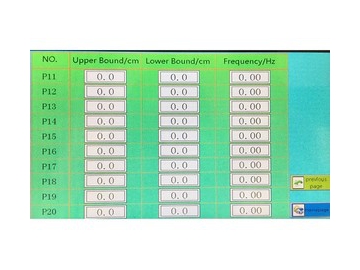

2. Allows to create and store 20 sets of individual programs and change language manually.
3. Designed with up and down limit protection, which can start to work at any position.
4. Combines high load capacity, up to 24 powder guns could be carried, adapts to both powder coating gun and wet painting gun.
| Model | COLO-2200D |
| Power supply | AC 220V/110V 50-60Hz |
| Motor power | 1.1 kw |
| Speed | 0-0.8m/s (0-50m/min) |
| Acceleration | 1m/s |
| Max. loading capacity | 25 kg |
| Controller | PLC with touch screen |
| Motor | Frequency adjustable |
| Stroke | 1.5m/2m/2.5m |
| Qty. Of Spray Gun | Max. 24pcs |
