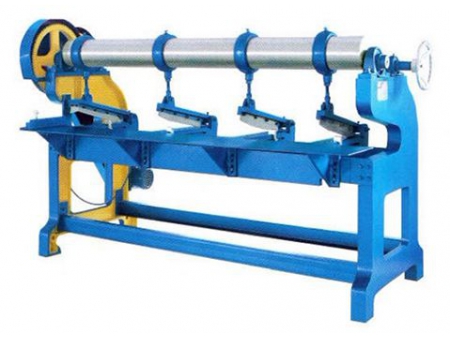

Eccentric slotter for corrugated boards

Model SAS2500/3000/3500

The four link corrugated paper slotting machine is the manual type and fits the edge cutting, slotting and angle cutting of corrugated paperboard of diversified specifications in a single process with the features of reasonable design and simple operation, adjustment and usage, and is used in various carton factories.

Technical Specifications of the Four-Bar Slotting and Corner Cutting
Model SAS2500 SAS3000 SAS3500
Appropriate paper width 2500mm 2500mm 3000mm
Cutting speed 40 sheets/min 40 sheets/min 40 sheets/min
Slotting size 7.5x350mm 7.5x580mm 7.5x600mm
Angle cutting size 60x350mm 60x530mm 60x530mm
Complete machine power 1.5kw 2.2kw 2.2kw
Machine weigh 1200kg 2800kg 3200kg
Machine dimensions 2850x1170x1500mm 3000x1600x1800mm 3500x1650x1850mm

As an experienced four link corrugated paper slotting machine manufacturer based in China, we also supply label slitting machine, rotary head film blowing machine, hot foil stamping and die cutting machine, and much more.

At CBADEN, we supply an extensive range of converting & printing machines and provide comprehensive services to accommodate customer's individual production demands.
