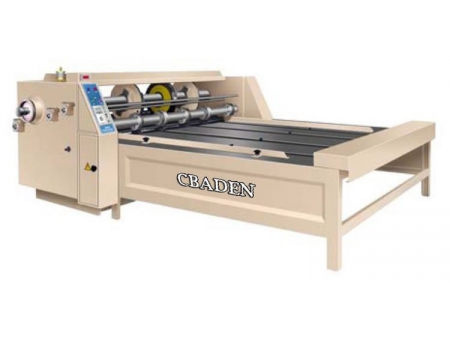

Rotary Slotting and Corner Cutting Machine
Request a Quote
Features
- The rotary slotting and corner cutting machine can be used to trim, crease, slot and corner cut. If need, the machine can also add equipment for boring air vents and hand holes of the carton.
- The positions of the print roller and slotting knife can be 360-degree electrically adjusted, and the adjustment before and after can be digitally displayed, ensuring high registration accuracy. Due to the fast printing and slotting, high working efficiency and reduced squander are achieved.
- The rotary slotting and corner cutting machine can adjust four groups of slotting knife simultaneously, which decreases the time of adjusting carton specifications and increases work productivity.
- There is a linkage device between creasing and sloting, and it could be adjusted simultaneously to guarantee that the two positions are accurate (no dislocation) to decrease squander.
- The gear transmission using circulating lubricating system to provide oil to extend the gear life. The rotary slotting and corner cutting machine sets up electronic calculator to be convenient for countting the production quantity.
Parameters
| Model | FYQ-1500 |
| Max cardboard size(mm ) | 1500*2500 |
| Min cardboard size(mm) | 300*600 |
| Max slot depth(mm) | 400 |
| Slot width(mm) | 7.5 |
| Min side size(mm) | 60 |
| Min front size(mm) | 260 |
| Max processing capacity(pages/min) | 80 |
| Main motor power(kw) | 4.0 |
| Dimensions(mm) | 3100*3800*2020 |
| Weight(kg) | 4000 |
| Model | FYQ-1600 |
| Max cardboard size(mm) | 2500*2500 |
| Min cardboard size(mm) | 325*600 |
| Max slot depth(mm) | 400 |
| Slot width(mm ) | 7.5 |
| Min side size(mm) | 60 |
| Min front size(mm) | 260 |
| Max processing capacity(pages/min) | 80 |
| Main motor power(kw) | 4.0 |
| Dimensions(mm) | 3350*3250*1500 |
| Weight(kg) | 9500 |
Besides the corrugated carton making equipment, Jiufeng company also provide rotary slotting and corner cutting machine for making carton and box, and as we provide complete corrugated cardboard box machine line, including corrugated cardboard printer, cardboard die cutter, cardboard folder and gluer with plenty of experience since 1996, we are sure to offer customers high quality corrugated carton equipment and corrugated cardboard solutions for customers.
