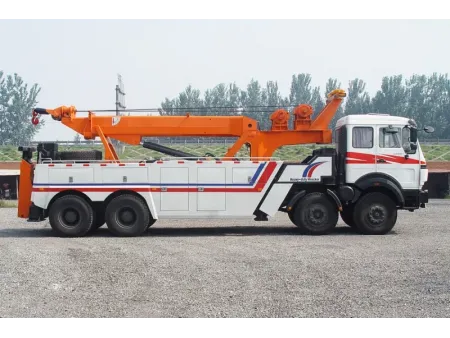

Off-Road Tow Truck

Request a Quote

Website: http://mine-trucks.com/4-3-off-road-tow-truck.html

Off-Road

Wrecker truck for off-road towing and recovery

Key Parameters

Max. towing capacity 50t
Max. lifting capacity 20t
Max. lifting height 6.4m
Max. effective length of boom3300mm

Applications
Our off-road tow trucks are innovatively designed for towing wide-body dump trucks under off-road conditions. With their chassis fully suited for mining environments, these tow trucks are capable of easily transporting faulty vehicles from the operation area to the repair shop, even on complex mining roads.

Specifications

Model	TLT105
Engine power (HP)	580
Max. towing capacity (t)	50
Max. lifting capacity (fully extended boom) (t)	12.5
Max. effective length of boom (mm)	3300
Telescopic stroke of boom (mm)	1510
Max. lifting capacity (t)	20
Lifting capacity at 30° (fully retracted boom) (t)	9
Max. lifting height (m)	6.4
Tire	16.00R25
Max. speed (km/h)	40

Features

Our off-road tow trucks have a maximum towing capacity of 50 tons, covering wide-body dump trucks with a total vehicle mass of 50 tons or less.
Equipped with a complete set of specialized interchangeable towing tools, our tow trucks can tow different models of wide-body dump trucks with plug-and-play towing interfaces.
With an 18-ton configuration, the tow truck ensures no “truck head tilting” during towing, with reliable connection to effectively prevent “decoupling”, ensuring safe and stable operations.
