Tow Truck (Wrecker)
SPECIAL TRUCKS
Built on an 8×4 chassis, this heavy-duty tow truck is equipped with a 380HP engine, a 12-speed transmission, and dual-reduction axles for reliable power across varied conditions. It supports a maximum lifting capacity of 30 tons and a maximum towing capacity of 7 tons. Designed for multi-scenario deployment, it can swiftly remove disabled trucks from major highways or recover large buses stranded in muddy or collapsed road sections.
Road traffic management: Equipped with dual winches (each with a 10-ton single-line pulling capacity), this 30-ton tow truck ensures efficient recovery and clearance of disabled trucks from major urban roadways. Engineered to operate in extreme temperatures ranging from -30°C to 50°C, it provides reliable performance in diverse environments, helping to maintain traffic flow and ensure road safety.
- Maximum lifting capacity 30 tons
- Maximum towing capacity 7 tons
- Drive configuration 8×4
| Model | 4038 Tow Truck | |
| Vehicle Curb Weight | 23670kg | |
| Gross Weight | 40000kg | |

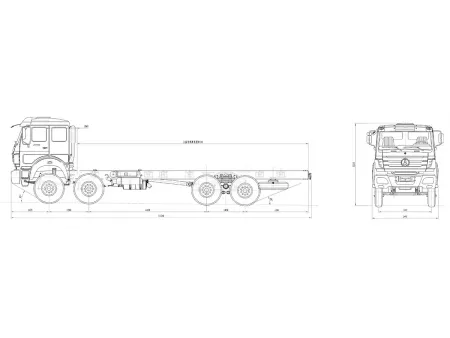

| Overall Dimensions | Length | 10730mm |
| Width | 2495mm | |
| Height | 3600mm (including warning light height) | |
| Wheel Base | 1500 4750 1450mm | |
| Track Width (Front/Rear) | 1995/1800mm | |
| Overhang (Front/Rear) | 1410/1620mm | |
| Rear Setback | 3320mm | |
| Driving Type | 8×4 | |
| Tyre | 12.00R20 | |
| Max. Travel Speed | 80km/h | |
| Max. Gradeability | 30% | |
| Min. Turning Diameter | 24m | |
| Min. Ground Clearance | 339mm | |
| Engine | Model | WP10.380E32 |
| Power | 380kW@2200r/min | |
| Torque | 1460N·m@1400～1600r/min | |
| Max. Towing Capacity | 31000kg | |
| Underlift | Max. Lift Capacity | 7200kg |
| Max. Lift Capacity (Fully Extended) | 6500kg | |
| Static Lift Capacity | 16000kg | |
| Effective Lift Length | 1760～3348mm | |
| Telescopic Stroke | 1639mm | |
| Negative Tilt Angle | -10° | |
| Range of Folding Angle | -10～93° | |
| Distance from Fork Upper Surface to Ground (Fully Retracted) | ≥900mm | |
| Boom | Max. Boom Capacity | 30000kg |
| Max. Boom Capacity (Fully Extended) | 7000kg | |
| Max. Boom Capacity (Fully Extended at Minimum Elevation) | 5000kg | |
| Basic Boom Length | 5460mm | |
| Total Boom Length | 8460mm | |
| Cylinder Telescopic Stroke | 3000mm | |
| Max. Lifting Height | 8680mm | |
| Range of Boom Lifting Angle | 0～50° | |
| Rotation | 360° continuous rotation | |
| Winch | Quantity | 2pcs |
| Rated Pulling Force | 150kN×2 | |
| Cable Diameter | Ø18mm | |
| Cable Length | 45m×2 | |
| Min. Cable Line Speed | 5m/min | |
| Outrigger | Transverse Span of Front Outriggers | 5030mm |
| Transverse Span of Rear Outriggers | 4050mm | |
| Longitudinal Span of Front/Rear Outriggers | 7065mm | |
*The above data is subject to the actual product.
