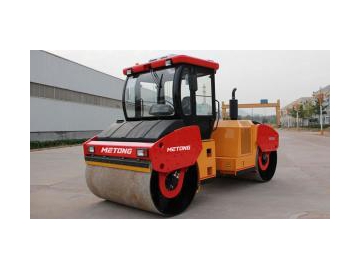

Double Drum Vibratory Roller (Full Hydraulic Road Roller, Model KD126/ KD126F/ KD136/ KD136F) Manufacturer

Double Drum Vibratory Roller (Full Hydraulic Road Roller, Model KD126/ KD126F/ KD136/ KD136F)

Request a Quote

View All: http://metongchina.com/4-4-2-double-drum-vibratory-roller.html

Features
1. This series double drum vibratory rollers are full hydraulic road rollers employing high performance SAUER hydraulic driving system and vibration system.
2. Both drums of the road compacting equipment are driven to work by hydraulic motor and the CVT system makes the entire double drum vibratory roller easy to control.
3. Components we use in the road compactors such as FAG vibratory bearings, EATON hose connectors, Delphi battery and moisture-proof electric plug connectors and are of reliable quality.
4. The advanced double-frequency double-amplitude vibration device of our double drum vibratory roller uses imported plunger pumps and motors.
5. Thanks to the articulated steering system and the unique crab traveling mechanism, this heavy engineering machinery is able to move flexibly.
6. The built-in wet multi-disk brake and unpowered fuel-cut braking system guarantee the road construction vehicle works safely.
7. Our double drum vibratory roller looks elegant with a streamlined appearance and has a good operating visual field with the control platform installed in the front of the cab.
8. An electric water sprinkling system which has water flow control function is equipped to this double drum road compactor.

Parameters of Full Hydraulic Double Drum Vibratory Roller

Model	Unit	KD126	KD126F	KD136	KD136F
Operating mass	kg	12000	12000	13000	13000
Static linear load	N/cm	276/276	276/276	299/299	299/299
Vibration amplitude	mm	0.35/0.8	0.35/0.8	0.4/0.88	0.4/0.88
Vibration frequency	Hz	42/50	42/50	42/50	42/50
Centrifugal force	kN	90×2/145×2	90×2/145×2	95×2/150×2	95×2/150×2
Max. traveling speed	km/h	12	12	12	12
Gradeability	%	30	30	30	30
Turning radius	mm	6000	6000	6000	6000
Drum width	mm	2130	2130	2130	2130
Drum diameter	mm	1250	1250	1250	1250
Max. steering angle	-	±40°	±40°	±40°	±40°
Min. ground clearance	mm	440	440	440	440
Engine model	-	Cummins	Cummins	Cummins	Cummins
Rated power	kW	97	97	97	97
Crab traveling distance	mm	±150	±150	±150	±150
Crab traveling angle	-	±20°	±20°	±20°	±20°
Max. swing angle	-	±12°	±12°	±12°	±12°
Fuel tank capacity	L	200	200	200	200
Water tank capacity	L	500×2	500×2	500×2	500×2
Overall dimension (L×W×H)	mm	4920×2300×3200	4920×2300×3200	4920×2300×3200	4920×2300×3200

Notes:
1. "F"stands for the function of separating vibration.
2. Due to continual improvement of technologies, the technical parameters are subject to change without prior notice.

Pictures of Construction Cases

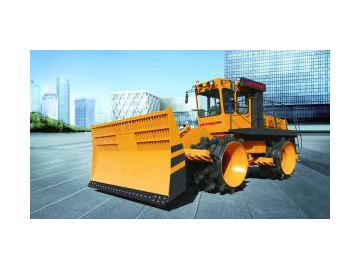

Our landfill compactor is a four-wheel-drive engineering vehicle with hydraulic torque converter and power shift transmission gearbox. With three forwards gears and three backwards gears, this trash disposal equipment works well in landfills.

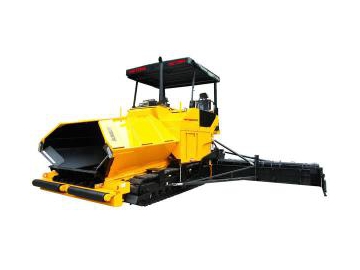

A low-noise independent composite heat dissipation system driven by hydraulic power enables our crawler asphalt paver to work under high temperature up to 55°C.

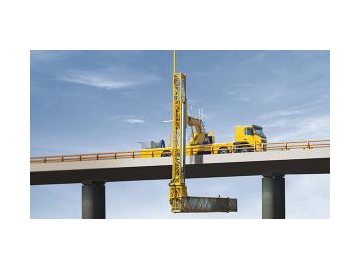

Bridge Inspection Vehicle is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features.

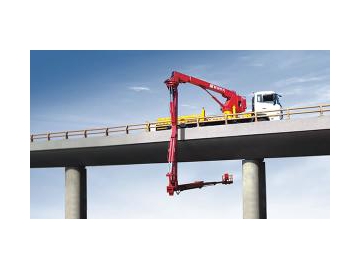

Bridge Inspection Vehicle(Bucket type-HZZ5250JQJ16) is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features.
