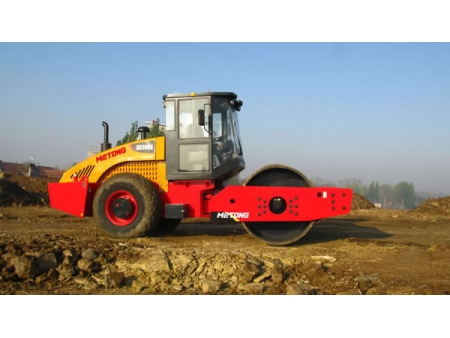

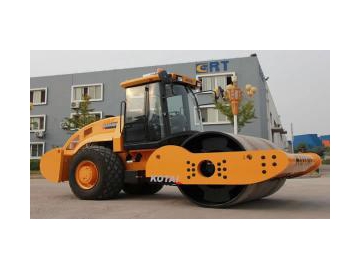

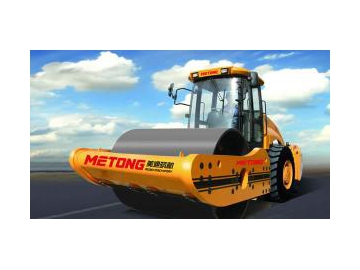

Single Drum Vibratory Roller (Full Hydraulic Road Roller, Model KS122D /KS202D /KS202DS /KS262D)
Features
1. As full hydraulic double drive road rollers, our single drum vibratory rollers come in models of KS122D, KS202D, KS202DS and KS262D for you to select.
2. These engineering vehicles look more appealing because they are designed with a streamlined appearance and an upturning engine hood.
3. The single drum vibratory roller features high automation and manoeuvrability due to the full hydraulic transmission and full electrical-hydraulic control systems.
4. SAUER driving and vibration systems ensure high stability and reliability of the road compactor.
5. Our single drum vibratory roller uses hydraulic motors to drive its running and is easy to operate since it is equipped with mono-lever control and CTV systems.
6. Double-frequency double-amplitude vibration guarantees the road construction machine can achieve excellent compaction effects.
7. Full hydraulic articulated steering system and maintenance-free battery cell are used in our single drum vibratory rollers.
8. The imported vibratory bearings as well as the electric plugs which are moisture proof, salt spray proof and fungus proof are of reliable quality.
9. Its braking system with automatic power cutting off function makes our road compaction machine safe and reliable.
| Item | Unit | KS122D | KS202D | KS202DS | KS262D |
| Operating mass | kg | 12000 | 20200 | 20200 | 25500 |
| Static linear load | N/cm | 322 | 632 | 539 | 764 |
| Vibration amplitude | mm | 1.85/0.83 | 1.95/0.91 | 1.95/0.91 | 2.05/1.00 |
| Vibration frequency | Hz | 30/34 | 28/34 | 28/32 | 27/32 |
| Centrifugal force | kN | 280/162 | 395/272 | 395/272 | 430/295 |
| Speed range | km/h | 0-10 | 0-10 | 0-10 | 0-9 |
| Gradeability | % | 45 | 45 | 40 | 45 |
| Turning radius | mm | 6000 | 6000 | 6250 | 6300 |
| Drum width | mm | 2130 | 2110 | 2110 | 2180 |
| Drum diameter | mm | 1533 | 1550 | 1550 | 1650 |
| Minimum ground clearance | mm | 486 | 486 | 486 | 486 |
| Engine model | - | DEUTZ | DEUTZ | DEUTZ | DEUTZ |
| Rated power | kW | 92 | 129 | 129 | 155 |
| Fuel tank capacity | L | 230 | 280 | 280 | 280 |
| Steering angle | - | ±35° | ±35° | ±35° | ±35° |
| Swing angle | - | ±12° | ±12° | ±12° | ±12° |
| Overall dimension (L×W×H) | mm | 6150×2310×3200 | 6370×239×3200 | 6370×231×3200 | 6800×2520×3250 |
Notes:
1. Padfoot is optional to be fitted to all the full hydraulic single drum vibratory rollers with double drives.
2. Due to continual improvement of technologies, the technical parameters are subject to change without prior notice.

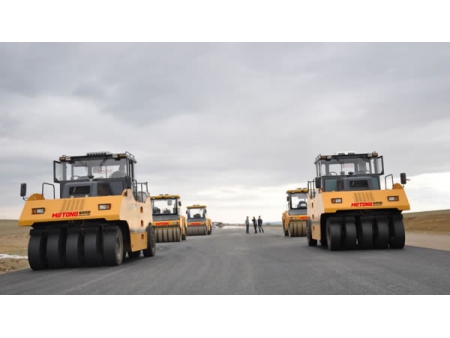

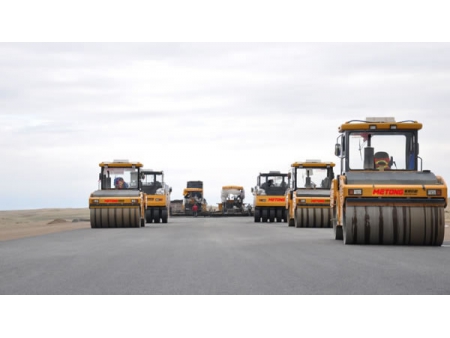

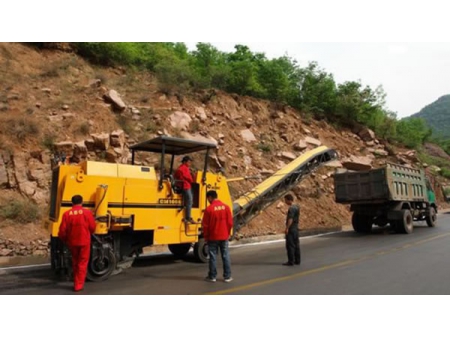

Pictures of Construction Cases
- The vibratory bearings we use in the single drum vibratory rollers are high quality imported products and the electric plug connectors are resistant to moisture, salt spray and fungus.

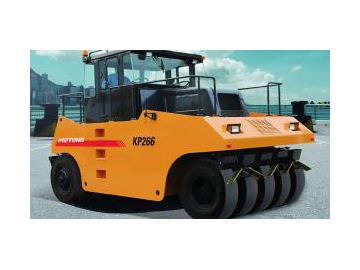

- As a full hydraulic roller, our KP266 pneumatic tyred roller adopts SAUER hydraulic driving system, which can achieve stepless speed regulation and enhance the compaction effects to better meet the road construction requirements.
- You can adjust the road compactor's counter weight and ground pressure by increasing or reducing the weight of ballast or by changing the tyre pressure.
-
-
- Hydraulic vibration with large centrifugal force makes for high-density compaction and the partition design of the steering wheel results in better compaction effects.
