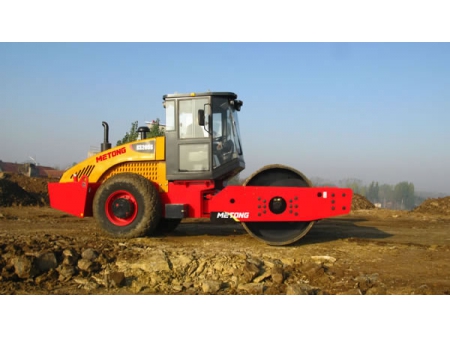

Single Drum Vibratory Roller (Full Hydraulic Road Roller, Model KS142D)
Features
1. The KS142D single drum vibratory roller is a full hydraulic road roller with streamlined styling and a upturning engine hood.
2. It has stable performance by using SAUER driving and vibration systems.
3. The vibratory bearings we use in the single drum vibratory rollers are high quality imported products and the electric plug connectors are resistant to moisture, salt spray and fungus.
4. Full hydraulic transmission, full electrical-hydraulic control as well as full hydraulic articulated steering endow the double drive road roller with high automation and manoeuvrability.
5. Our single drum vibratory roller whose running is driven by hydraulic motors is equipped with CTV system and can be operated through only one lever.
6. Double-frequency double-amplitude vibration enables this road compactor to achieve good compaction effects.
7. This heavy construction vehicle adopts a maintenance-free battery cell to facilitate vehicle maintenance and a braking system with automatic power shutting off device to ensure operating safety.
| Item | Unit | Parameter |
| Operating mass | kg | 14500 |
| Static linear load | N/cm | 437 |
| Vibration amplitude | mm | 1.85/0.85 |
| Vibration frequency | Hz | 30/34 |
| Centrifugal force | kN | 315/190 |
| Speed range | km/h | 0-10 |
| Gradeability | % | 45 |
| Turning radius | mm | 6000 |
| Drum width | mm | 2130 |
| Drum diameter | mm | 1533 |
| Minimum ground clearance | mm | 486 |
| Engine model | - | DEUTZ |
| Rated power | kW | 105 |
| Fuel tank capacity | L | 230 |
| Steering angle | - | ±35° |
| Swing angle | - | ±12° |
| Overall dimension (L×W×H) | mm | 6150×2310×3200 |
Notes:
1. Padfoot is optional to be fitted to all the full hydraulic single drum vibratory rollers with double drives.
2. Due to continual improvement of technologies, the technical parameters are subject to change without prior notice.

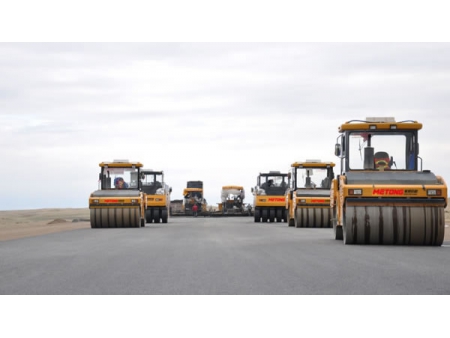

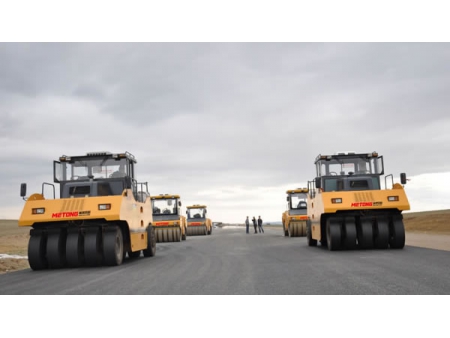

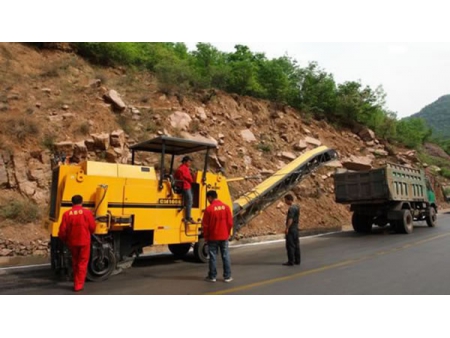

Pictures of Construction Cases

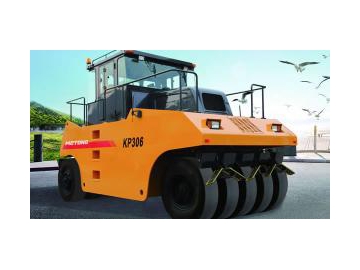

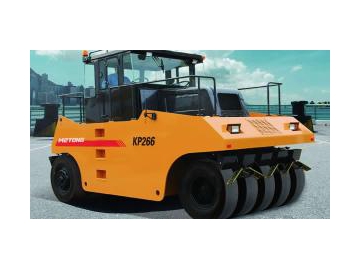

- As a full hydraulic roller, our KP266 pneumatic tyred roller adopts SAUER hydraulic driving system, which can achieve stepless speed regulation and enhance the compaction effects to better meet the road construction requirements.
- You can adjust the road compactor's counter weight and ground pressure by increasing or reducing the weight of ballast or by changing the tyre pressure.
- Hydraulic vibration with large centrifugal force makes for high-density compaction and the partition design of the steering wheel results in better compaction effects.
-
-

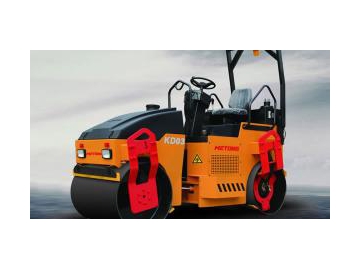

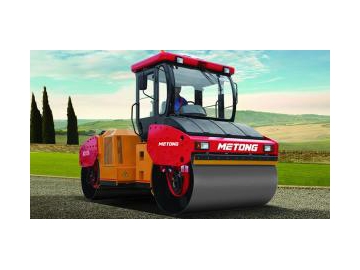

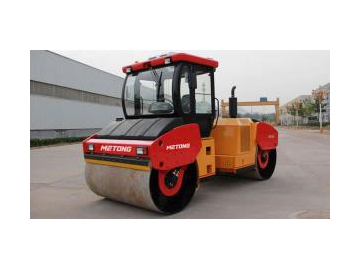

- Both drums of the road compacting equipment are driven to work by hydraulic motor and the CVT system makes the entire double drum vibratory roller easy to control.
