This product has been discontinued and removed from our shelves.

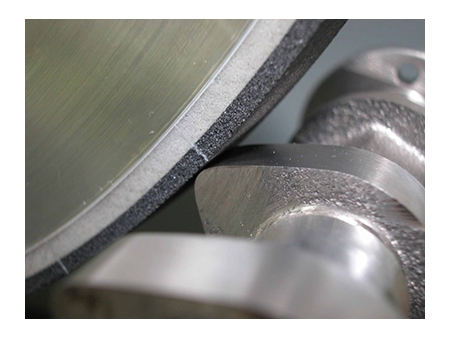

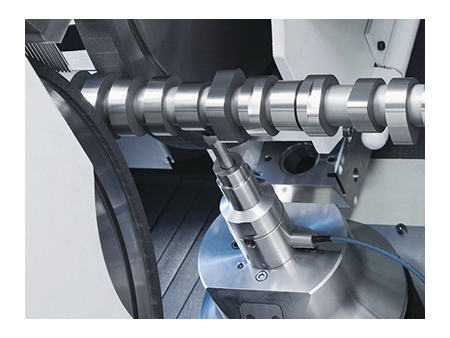

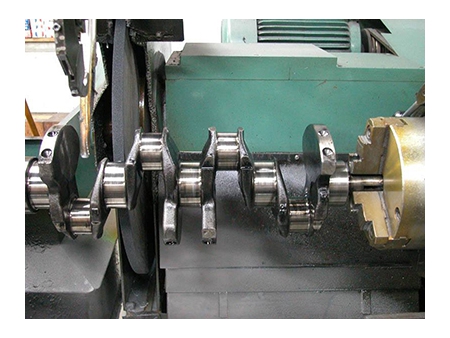

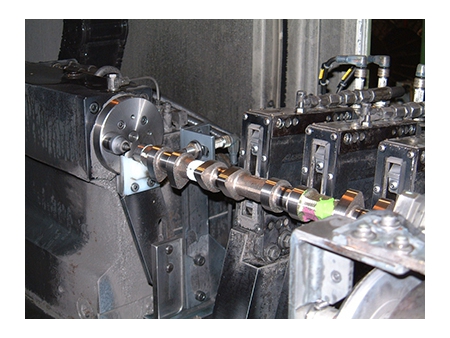

The vitrified CBN grinding wheel is used for grinding automobile parts like bent axles, camshafts, crankshaft front ends, crankshaft necks, flanges, and hub grease seals.
Features
- Excellent heat resistance.
- High grinding efficiency.
- Outstanding surface smoothness.
- Will not block the machine.

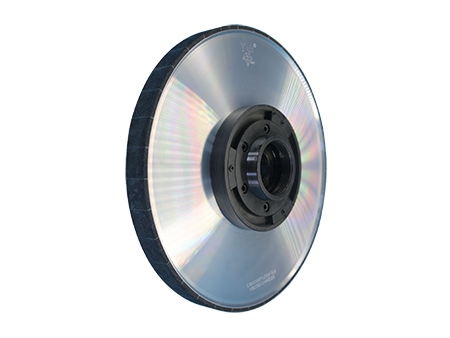

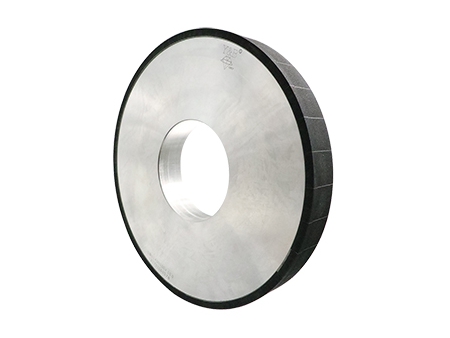

1A1 grinding wheel
| Outer diameter (mm) | Overall thickness(mm) | Arbor hole diameter(mm) | Abrasive width(mm) |
| 200 | 1-40 | 75/76.2/101.6 | 5/6/8/10/16/20 |
| 250 | 10-60 | 50.8/75/76.2/101.6/127 | |
| 300 | 3-60 | 75/76.2/101.6/127/203 | 5/6/8/10/16/20/25 |
| 350 | 12-50 | 127/203 | |
| 400 | 3.5-50 | ||
| 450 | 12-60 | 203/304.8/305 | 5/6/8/10/12/15 |
| 500 | |||
| 600 | |||
| 700 | |||
| 750 | |||
| 800 | 18-50 | 132/304.8/305 | |
| 850 | |||
| 900 | |||
| Note: other specifications can be customized upon request! | |||

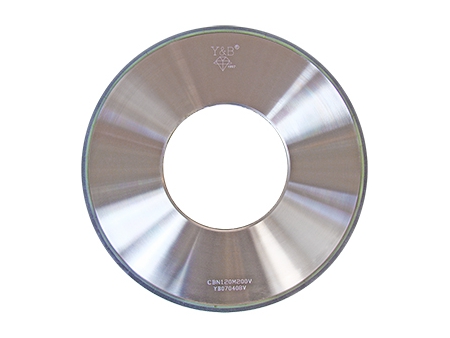

14A1 grinding wheel
| Outer diameter (mm) | Overall thickness (mm) | Arbor hole diameter(mm) | Wheel core dimension (mm) | Abrasive thickness(mm) | Abrasive width (mm) |
| 75 | 5-10 | 19.05/20 | 40-50 | 0.8-5 | 2-5 |
| 100 | 5-15 | 19.05/20/31.75/32 | 50-80 | 1-8 | 3-6 |
| 125 | 90-110 | ||||
| 150 | 10-15 | 31.75/32 | 100-130 | 1-10 | |
| 175 | 12-20 | 120-140 | |||
| 200 | 12-30 | 31.75/32/75 | 130-160 | 2-10 | 4/5/6/8/10 |
| 250 | 150-200 | 5-10 | |||
| 300 | 15-40 | 127/203 | 200-250 | 6-15 | 4/5/6/8/10 |
| 350 | 250-300 | ||||
| 400 | 20-50 | 300-350 | 6-20 | 5/6/8/10/12/15 | |
| 500 | 203/305 | 350-400 | 10-30 | ||
| 600 | 20-60 | 305 | 400-500 | ||
| 700 | 450-600 | ||||
| Note: other specifications can be customized upon request! | |||||
