Plastic Waste Recycling Machine
Request a Quote
This plastic waste recycling machine is ideal for recycling various kinds of plastic, such as HDPE, LDPE, PP, ABS, etc. It is a great solution for waste plastic recycling and is also environmentally friendly.
This plastic recycling machine features a hydraulic screen changer, allowing workers to quickly and easily switch filters. Its cutter is constructed with high quality alloy steel and has been designed for hobbing cutting knife for round pellet application, making it an ideal choice for film blowing machine operation. The machine has a long working lifespan and is designed for longevity.

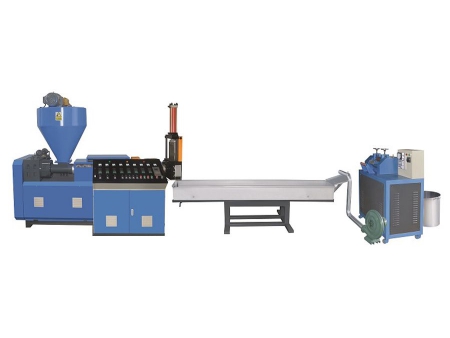

Single Stage Plastic Waste Recycling Machine (Water Cooled)
Video
Technical Parameters
| Model | SJ-100B | SJ-120B | SJ-140B | |
| Diameter of Screw (mm) | 100mm | 120mm | 140mm | |
| Screw L/D ratio | 20:1 | 20:1 | 20:1 | |
| Screw rotation speed (rpm) | 10-110 | 10-110 | 10-110 | |
| Gearbox | 173 | 200 | 225 | |
| Power of motor (kW) | 22 | 37 | 45 | |
| Capacity (kg/h) | 110 | 160 | 200 | |
| Water tank length (mm) | 2500 (Stainless) | |||
| Screen changer | Hydraulic for both screws | |||
| Diameter of screen changer (mm) | 6 | |||
| Diameter of die head (Alloy metal, mm) | 4 | |||
| Cutter knife | Hobbing Cutter | |||
| Power of cutter motor (kW) | 2.2 | 3 | 3 | |
| Weight (kg) | 2000 | 2200 | 2500 | |
| Dimensions (m) | 5.9*1.3*1.2 | 6*1.35*1.3 | 6.2*1.4*1.3 | |
- Gearbox and loader

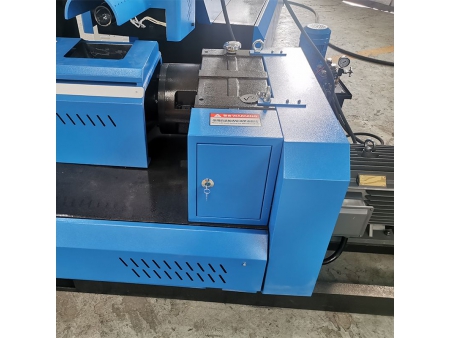

- Die head and screen changer
- Main extruder

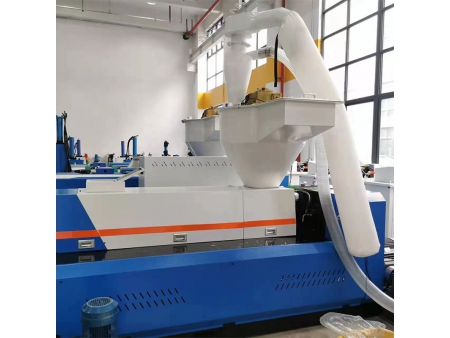

- Dry blower: high-speed type, 0.75 kW

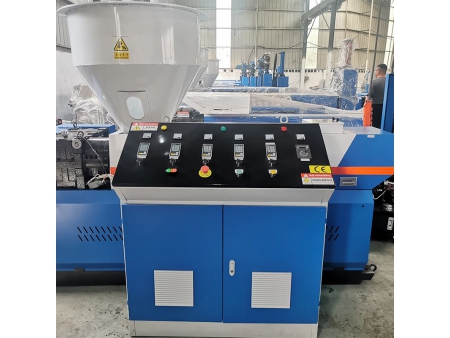

- Wire connection and electric box
- Cutting knife and final product

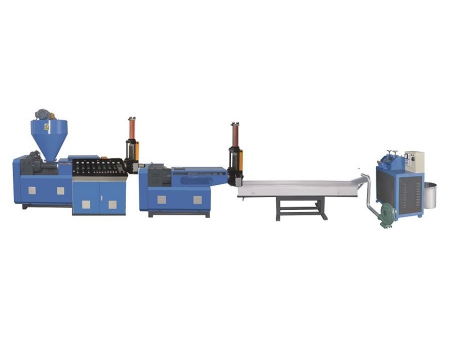

Two Stage Plastic Waste Recycling Machine
Video
Technical Parameters
| Model | SJ-100C | SJ-120C | SJ-140C |
| Diameter of Screw (mm) | 100/100 | 120/110 | 140/130 |
| Screw L/D ratio | 20:1/12:1 | 20:1/12:1 | 20:1/12:1 |
| Screw rotation speed (rpm) | 10-110 | 10-110 | 10-110 |
| Gearbox | 173/173 | 200/173 | 225/173 |
| Power of motor (kW) | 22/15 | 37/15 | 45/18.5 |
| Capacity (kg/h) | 130 | 180 | 220 |
| Water tank length (mm) | 2800 Stainless | ||
| Screen changer | Hydraulic for both screws | ||
| Diameter of screen changer (mm) | 6 | ||
| Diameter of die head (Alloy metal, mm) | 4 | ||
| Cutter knife | Hobbing cutter (alloy steel) | ||
| Power of cutter motor (kW) | 2.2 | 3 | 3 |
| Weight (t) | 2.6 | 3 | 4 |
| Dimensions (m) | 9*1.3*1.2 | 9.6*1.4*1.3 | 9.6*1.5*1.3 |
- Gearbox and loader
- Die head and hydraulic screen changer
- Main extruder
- Dry blower: high-speed type, 0.75 kW.
- Machine details: wire connection and electric box, including two inverters to control the two main motors, and an additional inverter for other uses.
- Hobbing cutting knife (made of alloy materials) and final product.
