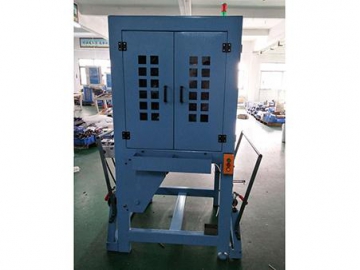

Wire Shield Braiding Machine of cable production line
Request a Quote
Application: applicable in shield braiding network cables and data cables.
Braiding materials: Al, Mg wire, copper wire, etc.
Wire diameter: 0.1-0.2mm
Bobbin diameter: 800mm
| Model | 16-spindle 16 | 24-spindle 24 |
| Braiding method | 2 overlap 2 | |
| Braiding direction | Vertical | |
| Spindle number | 16 (8, 8) | 24 (12, 12) |
| Spindle dimension | 80*22*80mm | 75*22*70mm |
| Spindle speed | 50-150rpm | 30-100rpm |
| Braiding pitch | 3.2-35.5mm 6.4-65mm | 13.3-134.5mm |
| Braiding cable diameter | Max 14mm | Max 24mm |
| Production speed | Max 585m/hour | Max 800m/hour |
| Main motor power | 1.5kw | 3kw |
| Dimension | 1200x1390x2350mm | 1500x1800x2650mm |
| Weight | 854kg | 1258kg |
